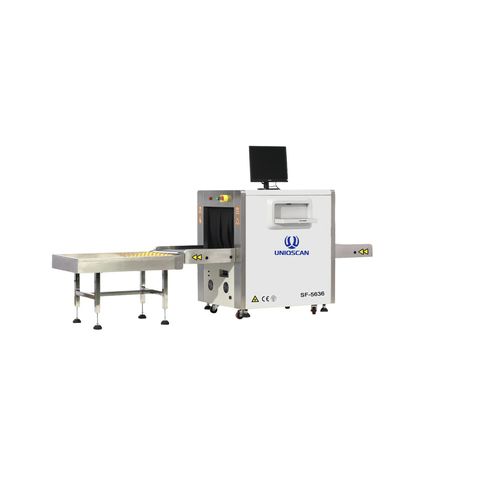

3D scanner SF5636

inspectionX-ray

GENERAL SPECIFICATIONS: Tunnel Size : 560(W) x360(H) mm Conveyor Speed: 0.22m/s Conveyor Max Load: 150 kg Single inspection dosage: < 1.01µGy Leakage radiation: <0.06µGy/h Wire Resolution: 40AWG(0.0787mm metal line) Steel Penetration: 40mm Film Safety: For ISO 1600 X-RAY GENERATOR 1.Orientation: Downward; 2. Tube Current 0.4-1.2MA ( adjustable ) ; 3. Anode voltage: 100-160KV; 4. X-ray divergence angle: 80 °; 5. Cooling: Sealed oil bath with forced air; 6. Generator cooling/working periods: Sealed oil bath with forced air/100%. X-RAY Sensor: L-Shaped array detector, 24bit; SPECIAL FEATURES Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time; Safety ray: Ray is transmitted under automatic control, avoiding the error, One•key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient; Eagle eye: Capable of expediently observing the magnifying area Self•diagnosis function: Give message automatically if malfunction for prompt maintenance.
