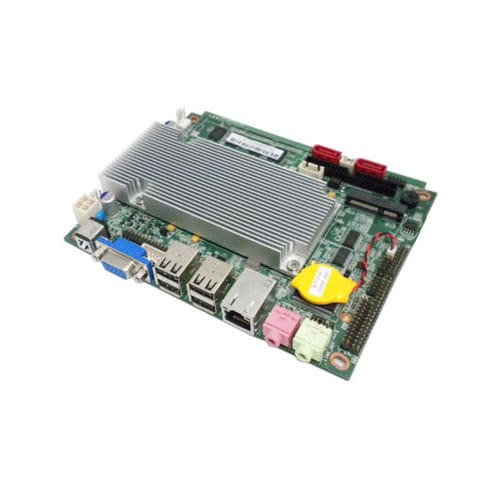

3.5" motherboard AM-P35N455

Intel® AtomIntel®DDR3 SDRAM

Target application --Industrial control computer Key features --Onboard Intel Atom 455 CPU -- Intel N455+ICH8M chipset, --Onboard 2GB DDR3 --Support VGA+LVDS --1*Gigabyte LAN --1*Mini PCIe support Wifi (3G module for optional 1xSIM slot) --2*SATAII --8* USB2.0 --6*COM --1* Mini SATA(Support SSD) --1* LPT CPU - Onboard Intel Atom N455 Chipset - Intel N455+ICH8M chipset Memory - Onboard 2GB DDR3 BIOS - AMI EFI BIOS Super I/O - W83627UHG-E Ethernet - RTL8111E-VL,10/100/1000Mbps,1x LAN 1xMini PCIe support Wifi (3G module for optional) GRAPHICS - Intel Atom N455 integrated Intel GMA 3150 Display - 1*VGA port 1*VGA header 1* 18bit LVDS VGA support maximum resolution 1920x1200 Audio - Realtek ALC662,HD AUDIO ,Line-out, Mic-in I/O - 2*SATAII 8*USB2.0 1*KB/MS 1*LPT header 5*RS-232 1* RS-/422/485 1*SPDIF 1*PS-ON Expansion - 1xSIM slot, 1x Mini SATA support SSD Watchdog - 255 Level, generate system reset when the timer overflows GPIO - 8bit GPIO Fan - N/A Power supply - 4Pin DC +12V Temperature - operating: 0 to 60 celsius Storage:-40 to 80 celsius Humidity - 5%~95% relative humidity, no-condensing Dimension - 155mmx 117mm
