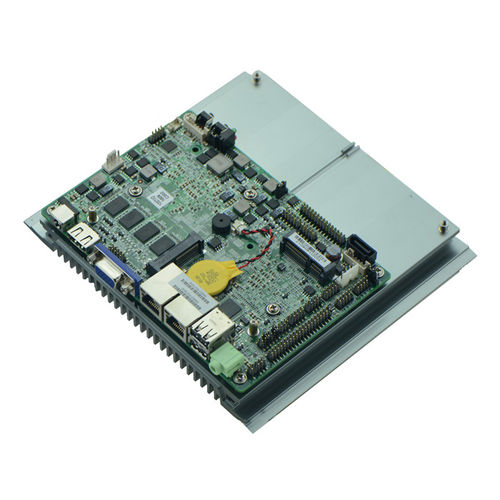

3.5" motherboard EPIC-C1037UC6L2M2W

dual-coreIntel®DDR3 SDRAM

--Intel® 1037U Dual-core 22nm Processor 1.8GHz TDP 17W --Intel® NM70 Chipset --Integrated DDR3 2GB Memory on-board --Built-in Intel® HD Graphics --Support VGA / HDMI / LVDS display output --supports synchronous/asynchronous display --1* Mini-PCIE (Support WIFI/3G) --1* MSATA, support SSD/WIFI(SSD 600MB/s) --2* Intel 82583V 10/100/1000Mbps Ethernet,Support Wake-on-LAN --1* SATAII 300MB/s --1* JSATAII pin, Can be transferred to SATA disk --Integrated Realtek HD ALC662 for 6-Channel output --6* USB 2.0 --6* RS232 COM, COM2 supports RS485/422 --1* SIM card --DC_12VSingle power supply --PCB Size:148mm x 102mm --Heatsink size:175mm x 155mm CPU - Intel® 1037U Dual-core 22nm Processor 1.8GHz TDP 17W Chipset - Intel® NM70 Chipset Memory - Integrated DDR3 2GB Memory on-board Graphics - Built-in Intel® HD Graphics Support VGA / HDMI / LVDS display output LVDS supports dual 24bit and synchronous/asynchronous display Expansion Slots - 1* Mini-PCIE (Support WIFI/3G) 1* MSATA, support SSD/WIFI(SSD 600MB/s) LAN - 2* Intel 82583V 10/100/1000Mbps Ethernet,Support Wake-on-LAN Storage - 1* SATAII 300MB/s 1* JSATAII pin, Can be transferred to SATA disk Audio - Integrated Realtek HD ALC662 for 6-Channel output , support MIC & Line-out Rear I/O - 1* 12V DC_JACK input 1* HDMI 1* VGA 2* RJ-45 LAN 2* USB 2.0 1* Line Out(Green) 1* POWER,1* RESET,1* LED1(POWERLED/HDDLED)(Front panel)
