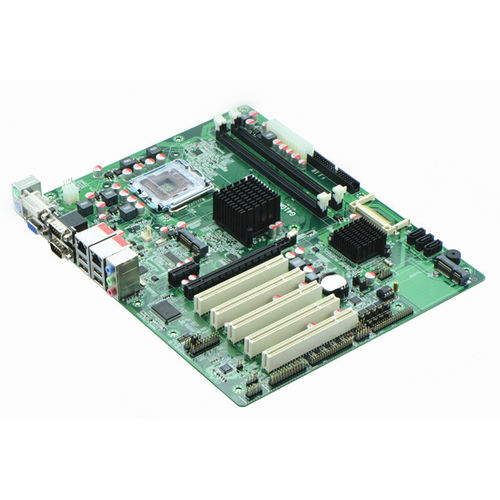

Intel® motherboard AM-G41DM-S3C10

ATXDDR3 SDRAMindustrial

--Support Intel® LGA 775 Socket Core 2 Duo, Core 2 Quad Processor --Intel® G41+82801GR Chipset --Support 2* DIMM DDR3 1066/800 MHz, Max. up to 4GB --Built-in Intel® GMA4500 graphics --support VGA/DVI synchronous/asynchronous display --1* PCI-E 16x,1* PCI-E 1x,5* PCI --1* Mini-PCIE(support WIFI) --2* Intel® 82583V 10/100/1000Mbps Ethernet --3* SATAII --1* IDE and CF card --1* Mini SATA(support SSD) --Integrated Realtek HD ALC662 for 6-Channel output,support MIC / Line-out --10* COM --2* RJ-45 LAN --8* USB 2.0 --24pin ATX Power supply --Dimension :305mm x 244mm CPU - Support Intel® LGA 775 Socket Core 2 Duo, Core 2 Quad Processor Chipset - Intel® G41+82801GR Chipset Memory - Support 2* DIMM DDR3 1066/800 MHz, Max. up to 4GB Graphics - Built-in Intel® GMA4500 graphics support VGA/DVI synchronous/asynchronous display Expansion Slots - 1* PCI-E 16x 1* PCI-E 1x 5* PCI 1* Mini-PCIE(support WIFI) LAN - 2* Intel® 82583V 10/100/1000Mbps Ethernet Support Wake-on-LAN and PXE Storage - 3* SATAII 1* IDE and CF card 1* Mini SATA(support SSD) Audio - Integrated Realtek HD ALC662 for 6-Channel output,support MIC / Line-out Rear I/O 1* PS/2 1* DVI 1* VGA 2* RS232 (COM2 supports RS232/RS422/RS485) 2* RJ-45 LAN 4* USB 2.0 1* AUDIO(MIC / Line out /Line IN)
