--Integrated Intel® 1037U 1.8GHz dual-core CPU TDP17W
--Intel® NM70 high speed chipset
--Onboard DDR3 2GB high speed memory
--Intel® HD Core graphics, Providing VAG / HDMI display output
--1* 2.5’SATA place
--1* MSATA , Supports SSD / WIFI
--Integrated 2* Intel 82583V Gigabit LAN chip,Supports Wake-on-LAN
--1* Mini-PCIE,supports WIFI /3G Module
--6* COM
--4* USB 2.0
--Audio: 1* Line out(green)
--2* LAN
--1* VGA
--1* HDMI
--1* DC_12V IN
--2* WIFI antenna port
--Dimension : 172*155*54mm (L*W*H/mm)
--DC_12V single power input
--Desktop or wall mounting
--Sandblasting oxidation process (Silver gray)

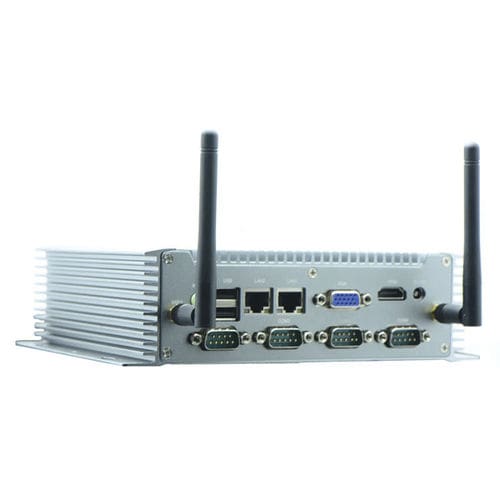

Model No. -
MINI-PC -C1037UC6L2M2W
Motherboard -
EPIC-C1037UC6L2M2W
CPU -
Integrated Intel® 1037U 1.8GHz dual-core CPU TDP17W
Chipset -
Intel® NM70 high speed chipset
System MemoryIntel® NM70 high speed chipset -
Onboard DDR3 2GB high speed memory
Graphics -
Intel® HD Core graphics, Providing VAG / HDMI display output
Storage -
1* 2.5’SATA place
1* MSATA , Supports SSD / WIFI
Network -
Integrated 2* Intel 82583V Gigabit LAN chip,Supports Wake-on-LAN
Wireless Network -
1* Mini-PCIE,supports WIFI /3G Module
Front Panel Port -
2* COM
2* USB 2.0
1* PWR and RST switch
1* PWRLED and HDDLED
