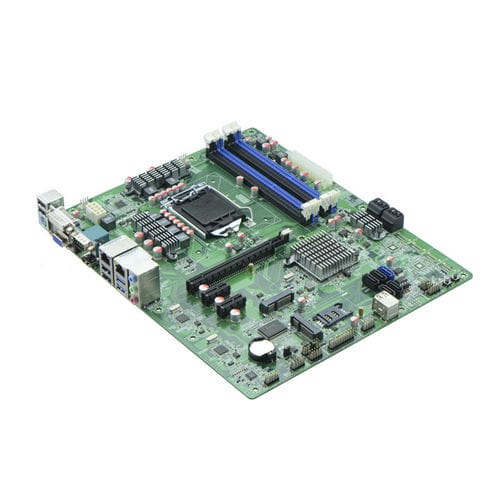

ATX motherboard AM-NVR75-S10

Intel® Core™Intel®DDR3 SDRAM

--Support LGA1155 Intel® Core™ 32nm,22nm,i3/i5/i7 Processor --Intel® B75 Chipset --Support 4* Dual channel DDR3 DIMM 1333/1066MHz, Max. Up to 32GB --Intel® HD Graphics --support VGA/HDMI/DVI synchronous/asynchronous display --1* PCI-Express 2.0 16x --2* PCI-Express 2.0 1x --1* Mini-PCIE (Support WIFI/3G) --Integrated Realtek HD ALC662 for 6-Channel output --10* SATAⅢ 6Gb/s (One supports SSD) --2* Intel 82583V 10/100/1000Mbps Ethernet --8* USB 2.0 --2* USB 3.0 --2*COM --2* RJ-45 LAN --24pin ATX Power --Dimension: 295mm x 245mm CPU - Support LGA1155 Intel® Core™ 32nm,22nm,i3/i5/i7 Processor Chipset - Intel® B75 Chipset Memory - Support 4* Dual channel DDR3 DIMM 1333/1066MHz, Max. Up to 32GB Graphics - Intel® HD Graphics - support VGA/HDMI/DVI synchronous/asynchronous display Expansion Slots - 1* PCI-Express 2.0 16x - 2* PCI-Express 2.0 1x - 1* Mini-PCIE (Support WIFI/3G) Audio - Integrated Realtek HD ALC662 for 6-Channel output - Support MIC/Line-out/Line-in Storage - 10* SATAⅢ 6Gb/s (One supports SSD) LAN - 2* Intel 82583V 10/100/1000Mbps Ethernet - Support Wake-on-LAN and PXE Rear I/O - 1* PS/2 - 4* USB 2.0 - 2* USB 3.0 - 1* DVI - 1* VGA - 1* HDMI - 1* RS232 COM (support +5V/+12V charged functions) - 2* RJ-45 LAN - 1* AUDIO interface (input\output\mic)
