Swing check valve ZSFZ seriesflangefire protectionfor water
Add to favorites
Compare this product
Characteristics
- Type
- swing
- Body
- flange
- Applications
- fire protection, for water
- DN
100 mm, 150 mm, 200 mm, 250 mm
(3.937 in, 5.906 in, 7.874 in, 9.843 in)- Pressure
12 bar, 16 bar
(174 psi, 232.1 psi)
Description

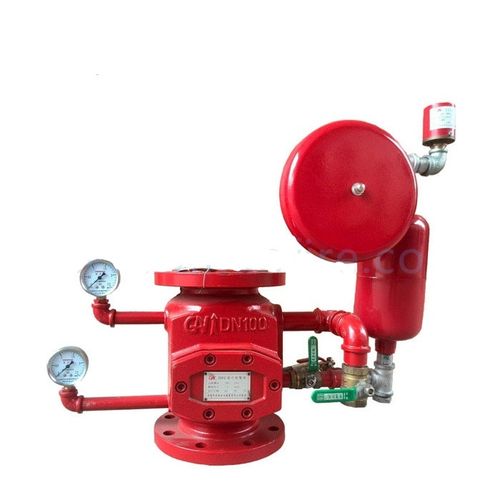

The ZSFZ series wet alarm valve is a check valve that only allows water flows unidirectionally and
drive the matching part to alarm at prescribed pressure and flow. It constitutes the sprinkler
system with water flow inductor, pressure switch and sprinklers. This valve is divided into two sides
by a valve flap. The above side is connected with system pipeline ant the underside is connected
with water supply.
Type - Approvals
Wet Alarm Valve 3" DN80 - /
Wet Alarm Valve 4" DN100 - FM
Wet Alarm Valve 5" DN125 - /
Wet Alarm Valve 6" DN150 - FM
Wet Alarm Valve 8" DN200 - FM
Wet Alarm Valve 10" DN250 - /
