Fire detector PL Series

for fire safety applicationsfixedremote

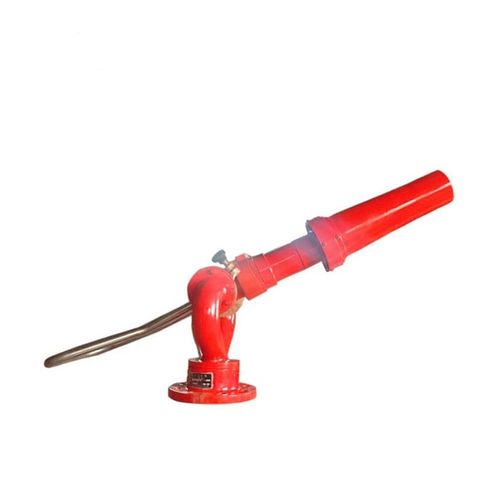

Foam and Water Dual Fire Monitor (PL) The PL series foam and water dual fire monitor is designed for remote extinguishing system that difficult for firemen to get close the fire. It is the new type multi-function fire monitors which is often loaded on fire trucks. For it is the foam/water dual fire monitor that it can spray water and foam as well. Advantages: 1. Concentrated jet flow and long range. 2. Large action area and multi-function. 3. Easy to operate and the barrel can either rotate or fasten. 4. Can be equipped on all kinds of fire trucks, fire boats, high platforms, fixed monitor towers and fire pipelines. Working principle: The PL series foam/water dual fire monitor consists of base, shell, body nozzle, barrel and horizontal swing mechanism. Foam solution flows into shell from base and was atomized when it pass the nozzle. The monitor inhales air to make the foam solution become foams and shoot out from barrel. Operators can adjust its elevation and horizontal angle while using.
