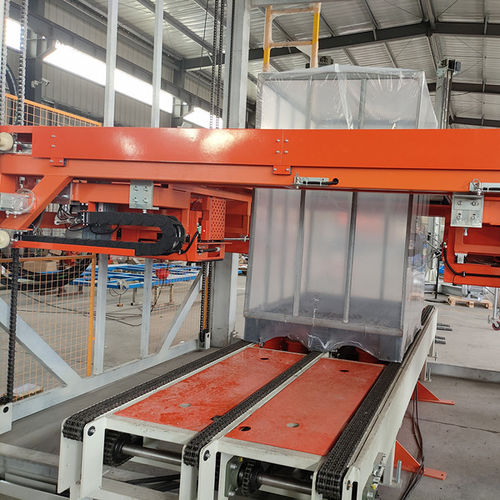

Fully-automatic shrink wrapping machine

cuttingbottleheating

The heat shrinkage wrapping machine palletlizing machine is mainly used to shrink the packages of pallet. Gas is its main heating medium, Shrink hooding consists of covering your loads with a hood and then heat shrinking it automatically. The shrink hooding will become an integrated part of the full pallet so that bottles can be transported dust-proof and rain-proof safely and fastly. It adopts Simens PLC and HMI, Fuji inverter,SEW motor and other import parts. Process The forklift places the goods that need to be heat shrinked onto the conveyor and the conveyor roller automatically transports the goods to the conveyor deviation station, the correction roller automatically corrects the position of the pallet, and then enters the hook heat shrink machine. When the equipment is in line status, the conveying system sends a signal to the heat shrink wrapping machine, and the heat shrink machine selects the appropriate parameters based on the set parameters. According to the parameters, the film feeding system starts pre feeding the film, the film supporting system supports the film, and the film cutting and welding system cuts and welds the film. At the same time,the conveying system transports the bottle stack to the hooking position, and after it is in place, begins to shrink hooding it. At the same time, the lifting mechanism rises to lift the pallet Lift up, after the membrane cover is completed, the exhaust system will work to extract the air inside the bag, and the combustion system will start working. After burning, it will resume and return to the initial state and continue waiting for the arrival of the next pallet for next cycle.
