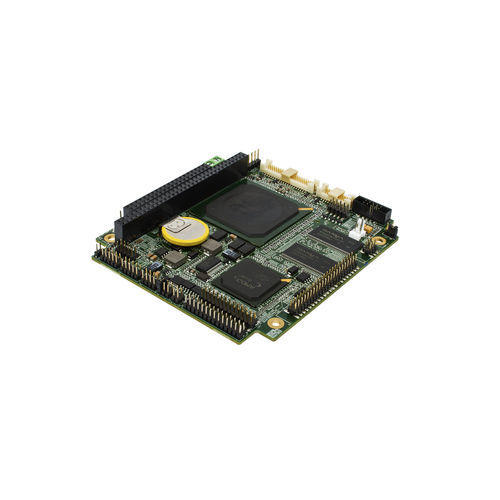

PCI CPU board ENC-5800

AMD Geode LX800RS-232

Onboard 256MB DDR1 memory Support 2 x 100M Base-T Ethernet Support 24-bit TTL and 2 channel LVDS LCD display Support 4 x USB 2.0 ports One 32bit PC/104+ bus System　 - CPU Socket - Onboard FSB - 100Mhz Chipset - AMD® Geode CS5536AD - System - Technology - Onboard 256M DDR Memory - Max.Capacity - 256M DDR Socket - Onboard Display　 - Graphic Controller - Onboard AMD® Geode LX800 LCD - Support 9-24 bit(1ppc) and 18-24-bit (2ppc) TFT panel - Resolution: 320 * 240 to 1600 * 1200 @ 24 bpp (60 Hz) LVDS - Single Channel 18-bit LVDS Interface - Resolution: Up to 1024* 786 DVI - N/A - N/A HDMI - N/A - N/A VGA - Onboard DB-15 CRT Port - Resolution: Up to 1600 * 1200 Dual Display - CRT + LCD, CRT + LVDS Ethernet 　 - Controller - LAN1:10/100Mbps- RTL8100CL - LAN2:N/A Audio - Controller - Realtek ACL655 support AC97 audio stereo sound Super I/O - Controller - SMSC 3114/3116 H/W Monitor　 - Watchdog Timer - Programmable 1 ~ 255 sec.;Support System Reset Smart fan - N/A TPM - Controller - N/A I/O Interface - USB - 4 * USB 2.0 Parallel - 1 * internal pin header, support SPP/EPP mode PS/2 - 1 x PS/2 GPIO - General purpose 3 channels Input and 3 channels Output IEEE 1394 - N/A Slot - PCIeX4 - N/A PCIeX1 - N/A PC104 - 1 * PC / 104 ; 16bit ISA Bus Slot PCI - N/A Mini-PCIe - N/A Storage - SATA - N/A IDE - One channel support up to two EIDE device SSD - N/A eSATA - N/A Compactflash - 1 Power Source - Power - +5V @ 2.1A, +12V @ 0.9A (Optional) Power Consumption - Typical Consumption:10W Environment - Operating Temperature - -20°C ~ 70°C Storage Temperature - -40°C ~ 85°C Operating Humidity - 0% ~ 90% relative humidity，non-condensing
