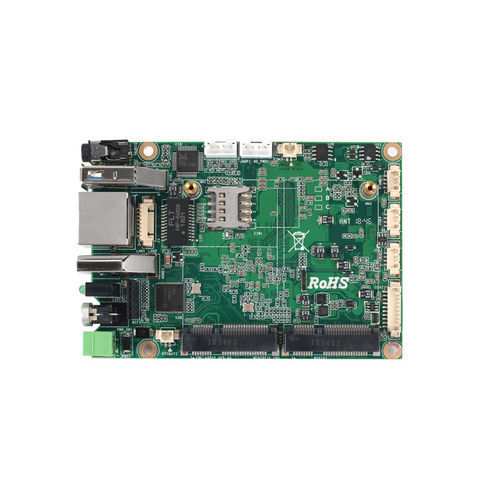

3.5" SBC ENC-A995Y

Intel® Apollo LakeSATAMini PCIe

Memory - Architecture - on-board LP DDR4 4GB, NO SODIMM slot Network - 3G/4G - Support 3G/4G module with Mini-PCIe socket Controller - LAN1: Intel I210 GbE LAN,RJ45 LAN2: Intel I210 GbE LAN,Wafer H/W Monitoring - Watch Dog Timer - 0~255 sec.,providing Watch Dog program routine I/O Interface - Serial port - 1x RS485,1.25mm Wafer Mini-PCIe - 1x Mini-PCIe Socket m-SATA - 1x m-SATA Socket,Max. transmission rate 3Gb/s USB - 1x USB 2.0 Port,1x USB 3.0 Wafer,Max.+5V@1A 2x USB 2.0 Wafer, USB 2.0/1.1 compatible,Max.+5V@1A Audio - Realtek HD ALC662 audio decoding Display - HDMI - 1x HDMI,Max. resolution 4K@30Hz, support audio output Power - Power Type - DC12V input, Support power reverse and overvoltage protection, DC-JACK,3.5mm phoenix connector Power Consumption - 7.92W(Max.) Environment - Operating Temp. - -20°C ~ 70°C Storage Temp. - -40°C ~ 80°C Operating Humidity - 0% ~ 90% relative humidity,non-condensing Storage Humidity - 0% ~ 90% relative humidity,non-condensing Formfactor - Dimensions - 100*70mm Weight - 0.1kg Certificate - 3C,FCC, CE, RoHS
