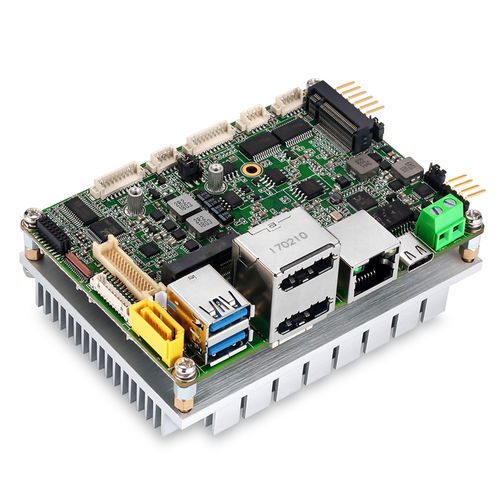

3.5" SBC ENC-998

Intel® Celeron®SATARS232

CPU Socket - Onboard BIOS - SPI 64M,CMOS battery CR2302 System Memory - Tech Architecture - DDR4L 2400MHz,1.2V low voltage JEDEC Max Capacity - Up to 16GB memory Socket - SODIMM Display - Graphic Controller - Intel® Gemini Lake Graphics DP - Support 2 x standard DP Socket EDP - 24BIT EDP DUAL CHANNEL DISPLAY,Max. 4K@60Hz MIPI CSIx4 - PIN single same to KD101N29-34TC MIPI LCD Ethernet - controller - LAN 1:RTL8111F GIGA LAN,RJ45 With LED,POE+PD Power supply module(>30W,48V input@550mA) LAN 2:RTL8111F GbE LAN,pin-Header Audio - controller - Realtek HD ALC662 audio codec+2 x 15W ampliter Super I/O - controller - INT6102 SIO H/W Monitoring - Watch Dog Timer - Programmable 1~255 sec., Support System Reset I/O - USB - 2 x USB 3.0 Port 1x USB 3.0 PIN-Header 4x compatible with USB2.0/1.1, Pinheader, maximum support +5V@1A Serial Port - 1 x RS232/RS485 option, 1 x RS232 Type-c - With power and USB 3.0(Sgle 1 roadUSB3.0) GPIO - 7 Bit GPIO(7GPIO+5V+GND SINGLE),3.3V @24mA Extended signal - 1x PCIEx1/LPC BUS+SMBUS+Switch M2 Scoket - M2 E-KEY 2230 support USB2.0/PCle 1X device M2 B-KEY 2242+2260 support USB2.0/SATA 1X device Storage - SATA - SATA scoket Power - Power Supply - DC-in 12-24V Power Consumption - Typical PW:10W Environment - Operating Temp. - -20°C ~ 70°C Storage Temp. - -40°C ~ 80°C Operating Humidity - 0% ~ 90% relative humidity, non-condensing Storage Humidity - 0% ~ 90% relative humidity, non-condensing Formfactor - Dimensions - 100 mm x 72 mm Weight - Certificate - 3C,FCC, CE, RoHS compliant
