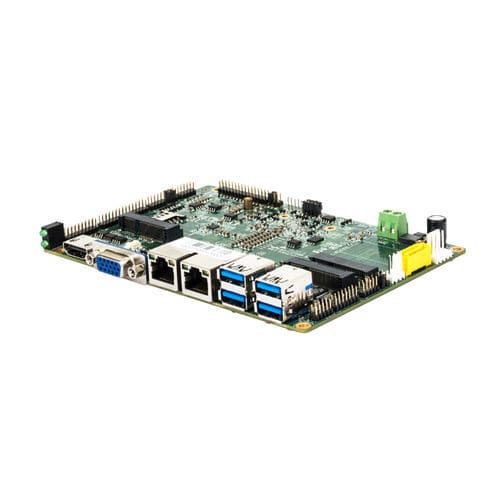

3.5" SBC ENC-H900

ATXIntel® Core™ Broadwell-UHaswell/Broadwell

CPU Package - Onboard CPU. (Celeron 2957U & I3 can be fanless design) Chipset - Intel® Haswell/Brodwell U-series SOC BIOS - System BIOS: SPI BIOS，CMOS battery RAM - Architecture - Single Channel DDR3 1066 MT/s Socket - N/A Display - Graphic Controller - Intel® HD4/5/6000 series graphic media accelerator HDMI - Max. Resolution 4K VGA - Support VGA output LVDS - Dual Channel LVDS LAN - Controller - LAN 1: Intel®I210 GbE LAN LAN 2: Intel®I210 GbE LAN Audio - Controller - Realtek HD ALC662 Audio decoder(right&left channel + Mic) Super I/O - Controller - NT6106，Support 6*COM H/W Monitor - Watchdog Timer - 0-255 sec., provide watchdog routiine Temp. Detect - Support CPU/Motherboard/HDD temp. detect GPIO - 12bit,provide routine,freely define input/output,3.3V@24mA level Expansion Bus - LPC BUS - Support,for Extensible 4*COM SMBUS - Support,for extensible GPIO Mini-PCIe - 1*half-size Mini-PCIe socket, support PCIe & USB device 1*full-size Mini-PCIe socket, support USB 3G/4G module 3G UIM socket Storage - SATA - Standard SATA connector,and SATA HDD power connector M-SATA - 1*full size m-SATA scoket, max. transmission rate:3Gb/s Power - Power Type - AT/ATX power mode optional (jumper selection),DC9-30V input, LTM3780 power design, support power reverse protection. Power Consumption - Typical Power: 15W Environment - Operating Temp. - -20°C ~ 60°C Storage Temp. - -40°C ~ 80°C Operating Humidity - 0% ~ 90% relative humidity, non-condensing Storage Humidity - 0% ~ 90% relative humidity, non-condensing Dimensions - 145 x 102mm, standard 3.5" Weight - Certificate - FCC, CE, RoHS
