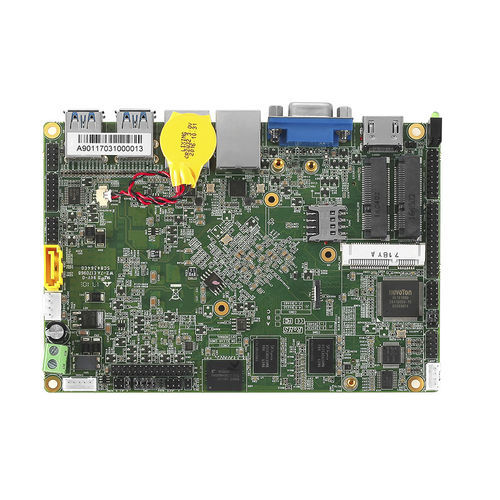

3.5" SBC ENC-A901

Intel® Celeron® J3455Intel® Apollo LakeSATA

Chipset - Intel® Apollo Lake series Atom SOC BIOS - 64Mb UEFI BIOS,support Wake-up-online and auto boot-up. External CMOS battery. Display - Graphic Controller - Integrated Intel® HD Graphics 500 graphic card,up to 750MHz, built-in 12 Eus unit Graphics Media Accelerator DirectX 12,Pixel Shader 5.0 Support H.264@Level 5.2,HEVC(H.265),JPEG,VP8,VP9 hardware decoding HDMI - HDMI port, Max. resolution:4K@60Hz, support Blu-ray HD player VGA - VGA, Max. resolution: 2K LVDS - Dual channel 24bit LVDS,max. resolution 2K Three Display - Support synch. & Asynch. three display LAN - Controller - LAN1: RTL8111E GbE network,RJ45 LAN2: RTL8111E GbE network,RJ45 Super I/O - Controller - NTC6106 SIO H/W Monitoring - Watch Dog Timer - 0-255 sec., provide watch dog routine/program. Temp. Monitor - Support CPU/Motherboard/HDD temp. detect I/O - USB 3.0 - 4 x USB 3.0/2.0 compatible，support max.+5V@1A. Com2-4 3-wire RS232 TX/RX signal GPIO - 12bit, provide routine/program,user-defined I/O,jumper selection: 3.3V/5V@24mA level Expansion Bus - Mini-PCIe - 1*full-size Mini-PCIe socket, support PCIe & USB device 1*full-size Mini-PCIe socket, support USB 3G/4G module 3G UIM socket LPC+SMBUS - ExtendibleCOM / GPIO/TPM module Storage - SATA - Standard SATA port, plus external SATA HDD power connector M-SATA - 1*full-size m-SATA socket, max. transmission rate: 3Gb/s EMMC - Kingston 16GB/32GB EMMC (optional) Power - Power Type - AT/ATX optional. DC9-30V input. Support power reverse/over-voltage protection.2PIN 5.08mm phoenix connector with fixed screws. F_PANEL /LED - LED - HDD/POWER LED F_PANEL PB/RESET/HDD LED/PB LED PINHEADER Environment - Operating Temp. - -20°C ~ 70°C
