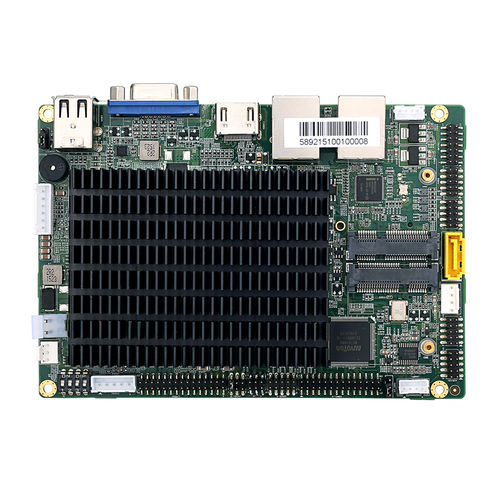

3.5" SBC ENC-5892

ATXIntel® Atom N2600Intel Atom N2800

CPU Package - Onboard FSB - DMI x 2 5Gb/s Chipset - G82NM10 BIOS - System BIOS: SPI BIOS Socket - N/A Display - Graphic Controller - Intel® GMA3600 Graphic media accelerator Dual LVDS - Support dual channel 24bit output, max. resolution:1920 x 1200 VGA - VGA Pinheader,max. resolution:1920 x 1200 @ 60Hz HDMI - HDMI1.3A type. Max resolution:1920 x 1200 @ 60Hz Dual Display - LVDS + VGA,LVDS+HDMI,HDMI+VGA Syn. Or Asyn. Display LAN - Controller - 2* Intel® 82583V Gigabit Nework card,RJ45 connector Audio - Controller - Realtek HD ALC662 audio decode(right&left channel + Mic) Super I/O - Controller - NT6106 H/W Monitor - Watch Dog Timer - 0-255 sec., provide Watchdog routine Cooler - Aluminium fanless heat-sink TPM - Controller - N/A I/O - USB - 4*USB2.0 / 1.1 compatible，support max.+5V@1A ESD protection: Air discharge ±15kV, Contact discharge:±8kV PS/2 - PS/2 keyboard & mouse GPIO - 8bit,provide routine, free desine I/O ,3.3V@24mA level SMBUS - 1 M-SATA - 1*Mini-PCIe M-SATA Scoket,support SANDISK protocol, max. transmission rate :3Gb/s Power Supply - Power Type - AT/ATX mode optional,DC +12V input, support power reverse protection Power Consumption - Typical Power: 8W Environment - Operating Temp. - 0°C ~ 60°C Storage Temp. - -20°C ~ 80°C Operating Humidity - 0% ~ 90% relative humidity, non-condensing Storage Humidity - 0% ~ 90% relative humidity, non-condensing Formfactor - Dimensions - 145 x 102mm Weight - Certificate - - FA1:C38CC, CE, RoHS
