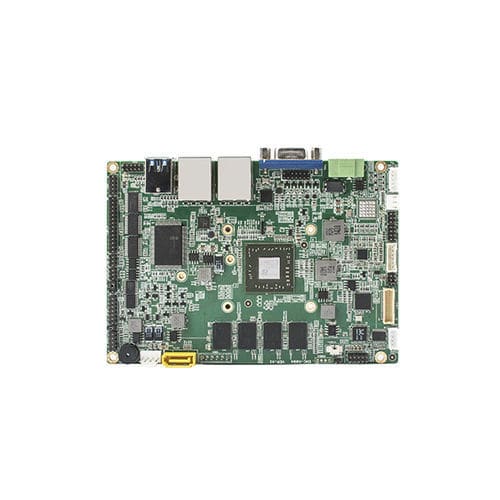

3.5" SBC ENC-K894

ATXquad-coredual-core

FSB - 450/ 600MHz Chipset - AMD® Kabini G-SOC Series APU BIOS - AMD SPI BIOS Capacity - Onboard 2GB Socket - N/A Display - Graphic Controller - AMD® HD8200/8300/8400 series Dual LVDS - Ch7511 convert to LVDS, Support dual channel 24bit output. Jumper setting to select resolution LCD backlight control, support Max 12V@3A overcurrent VGA - VGA PROT , LAYOUT PINHEADER TV_OUT - DP to TV output , S-VIDEO output LAN - Controller - LAN 1: Realtek RTL8111E GbE Lan LAN 2: Realtek RTL8111E GbE Lan WIFI - N/A Audio - Controller - Realtek ALC662 HDaudio decoder(left&righe channel+Mic) Support 2W amplifier Interface - LINE-OUT/MIC JACK, LINE-OUT JACK, Optical interfac Super I/O - Controller - ITE IT8782, Support System temperature detection H/W Monitor - Watch Dog Timer - Programmable 1~255 sec./min.; Support System Reset Smart Fan - DC +12V@3A dual rollers CPU FAN PS/2 - Support PS/2 KB/MOUSE GPIO - 10 bit, provide routine, freely define I/O,3.3V@24mA level SMBUS - 1*SMBUS Mini-PCIe - 1 * Full-size Mini-PCIe, support PCIe & USB device USIM - 1*Standard SIM socket M-SATA - Half size Mini-PCIe, support SSD, Max. transmission rate: 3Gb/ Power - Adaptor - AT/ATX optional, DC12V input; 3.5mm phoenix interface Power Type - Typical Power: 15W FRONT_PANEL - LED Indicator - POWER LED HDD LED RESET POWER BUTTOM Environment - Operating Environment - -20 ~ 60 ℃ Storage Environment - -40 ~ 80 ℃ Operating Humidity - 0% ~ 90% relative humidity, non-condensing Storage Humidity - 0% ~ 90% relative humidity, non-condensing Form Factor - Dimensions - 3.5” 102mm * 145mm Weight Regulator y Compliance - FCC, CE, RoHS compliant
