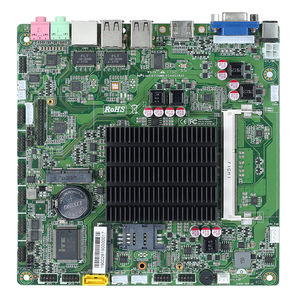

Haswell/Broadwell SBC ENC-H897

SATAMini PCIeRS232

Capacity - MAX 16GB Socket - SODIMM Graphic Controller - Intel® HD4000/5000/6000 Serial Graphic media accelerator Max. resolution: 4096 * 2304 24Hz Display - HDMI+HDMI Synchronous or asynchronous display Controller - LAN 1: RTL8111E GbE With RJ45 Port Back I/O Controller - Realtek HD ALC662 audio decoder(Right&left Channel + Mic Front I/O) Controller - NT6102 Watch Dog Timer - 0-255 sec., provide watch dog routine Thermal - DC +12V 12mm slim Fan, support SMART FAN and system temp. detection Controller - N/A USIM - 1 * standard 3G UIM socket Laptop SATA - 7+15Pin, adopt onboard heightened connecto Power Type - DC9-19V voltage dynamic input,support reverse power protection Power Consumption - Typical Power: 15W F_PANEL - HDD LED/POWER LED/RESET/POWER BOTTOM CIR - CIR function Operating Temp. - -0°C ~ 60°C Storage Temp. - -40°C ~ 80°C Operating Humidity - 0% ~ 90% relative humidity, non-condensing Storage Humidity - 0% ~ 90% relative humidity, non-condensing Dimensions - 100mm * 100mm,Intel NUC Weight - 0.45KG FCC, CE, RoHS
