Wall-mount enclosure CV026

polypropyleneoutdoorPLC

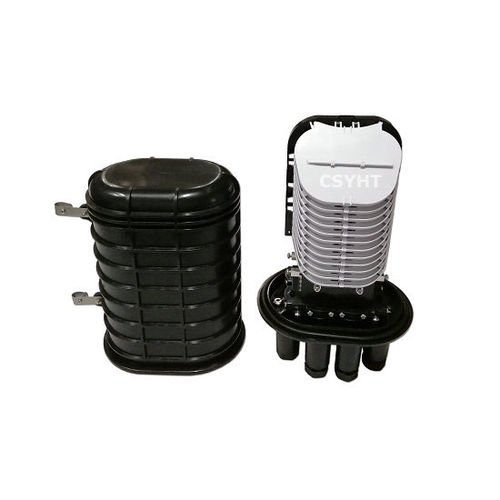

Junction closure CV026 Product specifications Model: CV026 Dimension(mm): 200.6x287.4x393.1mm Material: PP plastic Max. capacity: 288 fibers Max. qty of splice tray: 12 pcs Max. capacity of splice tray: 24 fibers Cable port: 6 round cable port 18mm; 2 cable port 18mm support cable entry without cutting Mechanical sealing structure IP standard: IP68 Outdoor aerial hanged, pole mounted, wall mounted etc. Product details CV026 is Junction boxes Domo for cables of 24, 60, 96, 144, 288 that support fiber splicing and protection. Features: Impact resistant PP material, black color Mechanical sealing structure, IP68 Max. 12pcs OST-061 fiber optic splice tray, max. 288 fibers 6 round cable port 18mm, 2 cable port 18mm support cable entry without cutting Working temperature -35℃~70℃, cold and heat resistance, electrical insulation, corrosion resistance. Support wall mounted, pole mounted, aerial hanged, direct buried application. Can load max. 18pcs SC simplex adapters Two splitter space for PLC 1x8, 1x16 Packing information: 4pcs per carton, each carton 61x44x45cm
