Multipole switch FLST06JXZMheat-resistantACDC
Add to favorites
Compare this product
Characteristics
- Number of poles
- multipole
- Protection level
- heat-resistant
- Other characteristics
- AC, DC, self-locking
- Primary current
2 A, 4 A
- Voltage
30 V, 125 V, 250 V
Description

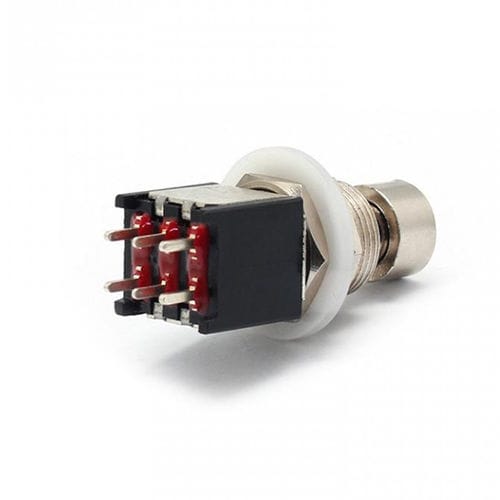

6pin 2PDT Small Foot Guitar Switches
6Pin OFF-ON Switch
SPST Foot Switch
Foot Pedal PUSH BUTTON SWITCH
Product description: The 6-leg guitar switch is a self-locking and self-replicating style, an accessory to the electric guitar switch used in sound effects.
Mode: FLST06JXZM
Voltage:30V 125V 250V
Current:AC 4A / DC 4A / AC 2A
Contact resistance:≤5mΩ
Insulation resistance:≥100MΩ, 500V DC
Withstand voltage:1000V AC / min
Action force:2.5 ± 0.8Kgf
Life:≥10000cycles
The 6-leg guitar switch is a self-locking and self-replicating style, an accessory to the electric guitar switch used in sound effects.
The 3PDT SWITCH is made of heat-resistant nylon,
The FOOT SWITCH has an installation aperture of 12MM
The current on the Guitar switch is 1A with a voltage of 12V
Pedal switch is linked by circuit board welding,
Welding mode and attention of guitar switch.Welding temperature ≤206℃±5°(wave soldering), within 3 seconds;
Manual solder :≤300℃±5°, within 3 seconds
