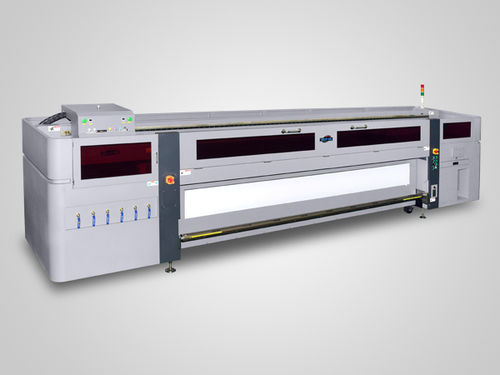

Hybrid large format printer YD-H3200R5

UV inkjet4-color5-color

A)Main Feature: 1.Ricoh Gen5,Ricoh Gen6,KYOCERA heads optional; 2.Automatic rectify deviation system ensure the printing precision and extend the lifetime of the mesh belt; 3.Print for flat and roll materials with multifunction and cost saving; 4.Automatic height measurement,the cartridge automatically reach the best printing position,which is convenient and fast; 5.Secondary cartridge double negative pressure function,white ink and color ink are pressed separately to make the printing process more stable with more outstanding effect. B)Specification .Model：YD-H3200 .Print Head：Ricoh-G5/G6/Kyocera print head(Optional) .Number of heads：2-12pcs(4-8 colors optional) .Print resolution：600×2400dp .Print width：3200mm(11ft) .Material type：Rigid and flexible material,flat and roll to roll material .Material thickness：Up to 50mm(2in) .Printing speed：30 M²/h with white,90M²/h without white for 3 rows CMYK .Ink type：Eco-friendly UV curing ink (NO VOC) .Ink color：CMYK,Lc,Lm,W,V(Optional) .RIP software：Onyx,PhotoPrint .Input format：Adobe Postscript Level 3,PDF,JPEG,TIFF,EPS,Al .Printer weight：2150KG .Printer size：5800mm[L]×1580mm[W]×1530mm[H](19ft×5.2ft×5ft) .Package size：6000mm[L]×1850mm[W]×1930mm[H](19.7ft×6ft×6.3ft) .Power requirement：220V/AC(±10%),50/60 Hz;8.5 KW(38A) .Working enyironment：Separate,litle sunlight,ventilated .workshop.Temperature:18°C~30℃ (64°F～86°F)Humidity:30%～70%(Non-condensing)Ventilation equipment:Suggest Overhead exhaust fan,displacement 600 cfm
