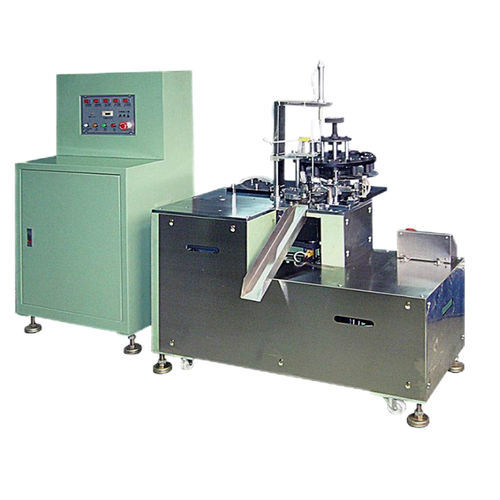

Semi-automatic sealing machine XCJF-B

capacitorcompact

1. Size: 920mm (length) * 650mm (width) * 1247mm (height) 2. Weight：500KG 3. Power supply/power：AC220V/50HZ/60HZ 0.9KW 4. Product specification：φ4-φ22 5. Equipment speed：40pcs/min 6. Color：The standard color is apple green（Swatches are required for custom colors) This machine is suitable for sampling or small batch production. Assembles the core and rubber plug manually and then put it into the aluminum shell, and then put them into rotating disk for sealing and girding at the waist of shells. Simplex station for sealing and girding waist (girding station rotates). The device is with CAM mechanical without external air source. The electrical control cabinet is separated from the machine and can be isolated from the glove box. The machine has been anti-corrosive treated.
