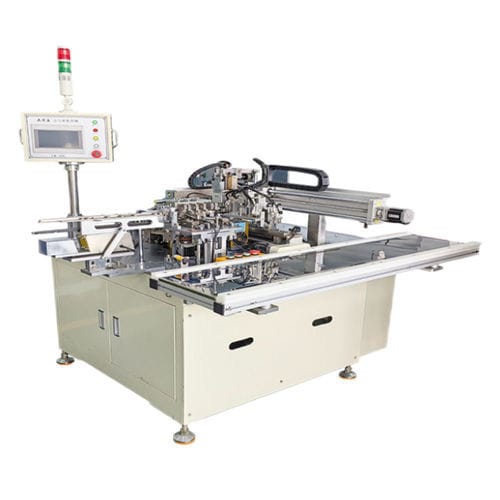

Capacitor welding machine XCJDHspotautomaticstandalone
Add to favorites
Compare this product
Characteristics
- Technique
- spot
- Operational mode
- automatic
- Configuration
- standalone
- Applications
- capacitor
- Power supply
- 380V three-phase
- Power
3,500 W
- Output frequency
50 Hz, 60 Hz
Description
1. Size：1950 X 1400 X 1650mm
2. Weight：1800KG
3. Power supply：AC380V，50HZ/60HZ
4. Power：3.5KW
5. Color: sapphire blue is the standard color ( Swatches are required for custom colors )
6. Product specification: Ø5, Ø5.5, Ø6.3, Ø8, Ø10
7. Product height: 3-15mm
8. Product spot welding height difference: ≤0.2mm
9. Quantity of welding products: determined by Product specification
10. Welding Speed: 90-100pcs/min
11. Electrode length: 300mm or 245mm
12. Electrode width: 10mm±
13. Electrode thickness: ≥0.6mm
14. Welding position: starting point and end point 20mm-50mm adjustable
15. Welding direction: positive electrode in front
