Phase rotation meter MECO-SEP-17.0

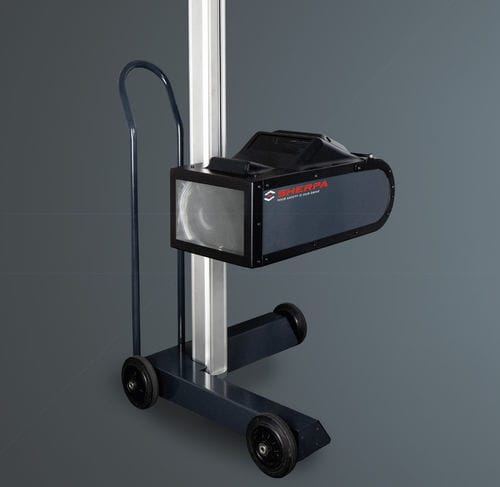

Scope of delivery: - Driving carriage with guide column without wheels (can be installed on rubber wheels or wheels for rails, see options) - Light box with CMOS camera, interactive touch screen display, measurement electronics, Li-ion rechargeable battery for wireless use, with Li-ion rechargeable battery power adapter - Laser sighting system with battery - TÜV seal of approval MECO-SEP device description: - The SEP headlight tester is a device to check and adjust vehicle headlights in vehicle types such as: Passenger car, motorcycle, delivery truck, and commercial vehicle and complies with the requirements of German directive Rili 23/2018 StVZO (German PTI headlight test guideline) with addendum 2/2019. - The SEP is equipped with an angle sensor and therefore adjusts the angle automatically to a vertical perpendicular. - The headlight image is captured and digitized by a CMOS camera. The operator can view the display on an interactive touch screen above the light housing. - The large-scale Fresnel lens features a scratch-proof glass plate, which is able to be easily cleaned. - Positioning in front of the headlight is very easy thanks to the large diameter of the Fresnel lens. - All common headlight systems such as filament, halogen, xenon, LED matrix, etc. can be tested and adjusted with the SEP. - The SEP is equipped with a high-performance Li-ion battery for wireless use. - The SEP features robust mechanics and a three-wheeled driving carriage. - Rubber or rail wheels for running rails are also available for the driving carriage as an option.
