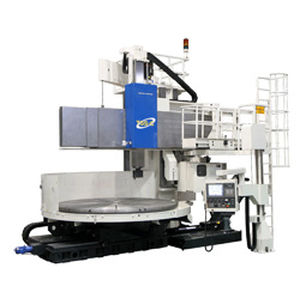

CNC boring mill TSS-C

verticalcolumn typehigh-precision

Shibaura machine's TSS-C series machines, which have a high reputation for performance and versatility are now available with additional features Main features Main features TSS-C(S) model was developed with the addition of a live spindle and table indexing to the CNC vertical boring and turning machine of single column type TSS-C(S) model also performs machining operations as boring, drilling and tapping Table diameter/maximum swing assures stable machining even of large-diameter workpieces TSS-C series preserves the best features of single-column machine. The stationary column and the moving table perform stable and accurate machining of large-diameter workpieces, larger the table diameter Two super-precision roller bearings of table maintain excellent stability The table supported by two roller bearings stabilizes heavy-duty machining operations at high speed even at machining of large-diameter work Roller type linear guides are employed for the rail head guideway (X-axis) to assure smooth high-speed feed and micro feed. The positioning accuracy has also increased Powerful, accurate and easy-to-operate. Table The table is suppoeted by a super-precision thrust cylindrical roller bearing and a tapered roller bearing, it maintains stable heavy-duty cutting operations at high speed even at machining of large-diameter helical gear under the table through a V belt and speed change gear train.Table speed change is performed by a two-range hydraulic shift and AC motor control.
