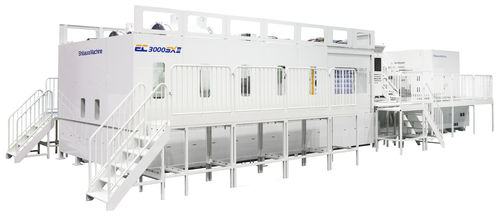

Horizontal injection molding machine EC3000SXIII

hydraulicelectric

To realize a decarbonized society, we have added the EC3000SXⅢ ultra-large all-electric injection molding machine to our lineup, which contributes to both improved energy efficiency and production efficiency in the manufacturing process. We will introduce you to the three keywords: “high productivity,” “reduced environmental impact,” and “easy maintenance". High plasticization rate screw ESB Based on our plasticizing technology, we have developed a new ESB screw that achieves high plasticization rate. This screw features a long sub-flight design with L/D of 24. Capable of high peripheral speeds of 50 m/min, the screw can reduce plasticizing time by 50% compared to conventional screws. High dispersion element cross ring (option) High dispersion elements and cross rings contribute to improve color dispersion. Color dispersion performance is equivalent to that of mixing nozzles, and purging pressure can be reduced by 57% compared to mixing nozzles. This ESB screw and cross ring enables stable plasticization of large volumes of resin in a short time Contribute to the improvement of production capacity. High productivity] Clamping unit Shortened dry cycle time The movable platen linear guide support structure adopted from the EC-SX series has been used to shorten the mold opening and closing time. The machine achieves the industry's fastest dry cycle by speeding up the mold open/close operation and accurately controlling acceleration and deceleration, and its bushingless tie-bar structure realizes clean mold open/close.
