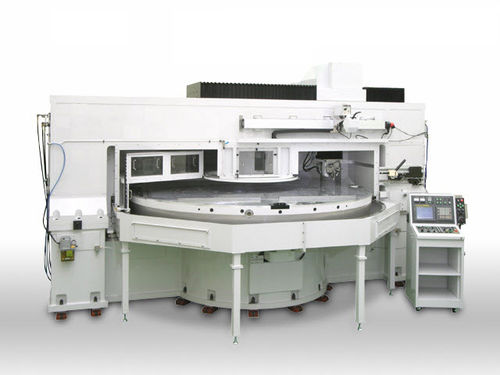

CNC turning machine UTD seriesvertical3-axiscolumn type
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 3-axis
- Structure
- column type
- Performance
- high-precision, high-rigidity
- Other characteristics
- large
- Diameter
2,200 mm, 3,400 mm
(86.61 in, 133.86 in)- Axe X
1,100 mm, 1,850 mm
(43 in, 73 in)- Axe Z
160 mm, 240 mm
(6 in, 9 in)- Rapids on X
1,500 mm/min
(1 in/s)- Rapids on Z
1,500 mm/min
(1 in/s)- Weight
1,000 kg, 38,000 kg
(2,205 lb, 83,776 lb)
Description
This machine is a vertical-type precision lathe used for machining of a large-sized Fresnel lens mold. The following features are equipped to obtain high-precision machine motion and machining accuracy.
Highly Precise Tool Edge Adjustment Function
The swiveling axis of the Swivel Head that executes highly precise tool edge adjustment is supported via High Precision Table Type Aerostatic Bearing Spindle. A high precision rotary encoder is provided in position feedback
Precision Table run-out
The Table is supported by a hydrostatic bearing guide way, and a mechanism that minimizes influence of vibration and heat generation from the table drive motor is equipped.
Machine Rigidity Increased to the Maximum Limit
The Column and Cross-rail are monoblock cast. high rigidity and high precision V-V Roller Guide Way with Non-Circular System is equipped in the saddle guide way, and high rigidity is realized.
Applications
Mold for Fresnel lens for use in the concentration solar power system
-> Machining a lens mold for incidence of high-density sunlight on the solar battery device
