Piston seal RSOOO

lippedcircularelastomer

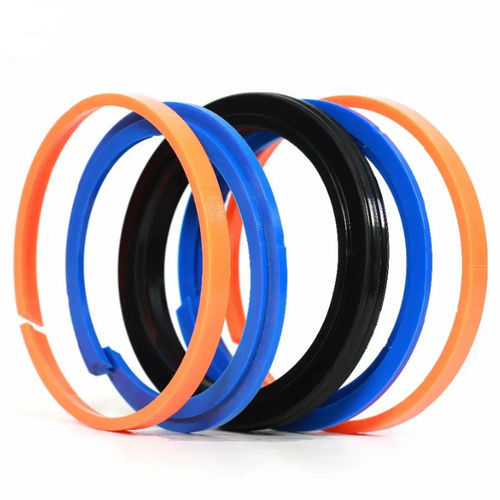

Double-acting Compact Piston Seal -RSOOO With five part designs, our RSOOO compact seals are used as Compact piston seals for double-acting cylinders with a maximum pressure of 35MPa. RSOOO has an NBR ring with 3 sealing lips in the middle; Elastomer has an good sealing effect in both dynamic and static conditions.2 polyester elastomer back up rings to reduce the allowable clearance on both sides;back up ring prevent the elastomer be extruded into the sealing gap. 2 POM ring as a guide.the role of the guide ring is to help the piston in the cylinder guide and absorb the radial force. it mainly used in hydraulic cylinders as a piston seal. As shown in the design, the sealing operation is performed by an NBR ring. DESCRIPTION With five part designs, our KDAS compact seals are used as Compact piston seals for double-acting cylinders with a maximum pressure of 35MPa. KDAS has an NBR ring with 3 sealing lips in the middle; Elastomer has an good sealing effect in both dynamic and static conditions.2 polyester elastomer back up rings to reduce the allowable clearance on both sides;back up ring prevent the elastomer be extruded into the sealing gap. 2 POM ring as a guide.the role of the guide ring is to help the piston in the cylinder guide and absorb the radial force. it mainly used in hydraulic cylinders as a piston seal. As shown in the design, the sealing operation is performed by an NBR ring. Our Advantages -Good sealing effect, also suitable for holding cylinders. -Insensibility against shock loads and pressure peaks. -Capable of installation in closed grooves ofr reduced machining costs. -Easy installation. POM+NBR+TPE
