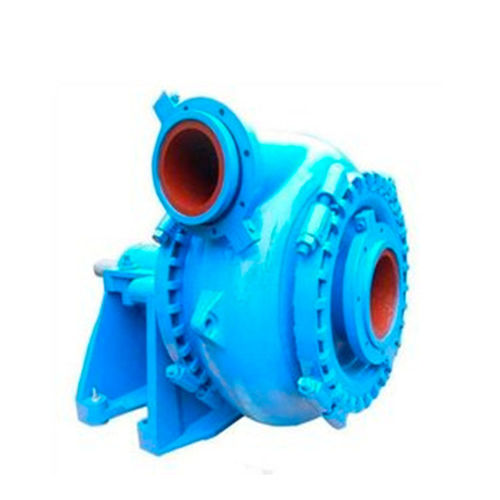

Centrifugal pump 6/4D-SGfor sandself-primingindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for sand
- Priming
- self-priming
- Domain
- industrial
- Applications
- dredging, discharge
- Material
- metal
- Flow
Min.: 36 m³/h
(1,271.328 ft³/h)Max.: 250 m³/h
(8,828.66668 ft³/h)- Head
Min.: 5 m
(16'04" )Max.: 52 m
(170'07" )- Power
60 kW
(81.58 hp)
Description
Type SG(orSGH) gravel pumps are designed for continuously handling the most difficult high abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable for delivering slurries in Mining, Explosive sludge in metal melting, Dredging in dredger and river course, and other fields. Type GH are high head pumps.
Construction of this pump is of single casing connected by means of clamp bands and wide wet-passage. The wet-parts are made of Ni_hard and high chromium abrasion-resistance alloys. The discharge direction of pump can be oriented in any direction of 360°. This type of pump possesses the advantages of easy installation and operation, good performance of NPSH and abrasion-resistance.
Sunbo Pump can offer dredge gravel pumps size from 4" to 18". Capacity from 36-4320 m³/h, Head from 5-80m.
