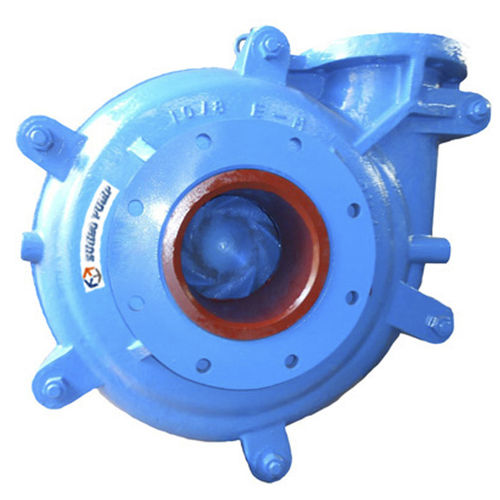

The slurry pump is a type of centrifugal pump, designed for pumping liquid containing solid particles in mining, metallurgy,coal washing ,sewage water treatment,power plant,dredging.and chemical and petroleum industries etc
The MS type pumps were designed specifically for successive use in slurry type applications where a large flow at a low to medium developed head is required. The type SM and SL pumps with its encapsulated design is similar design to the SH pump, but with a significantly reduced physical size when compared to the HS pump.
Features:
Bearing assembly---A large diameter shaft with short overhang minimizes deflection and contributes in to long bearing life. Only flour through bolts are required to hold the cartridge type housing in the frame.
Liners---Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer seal rings back all liner joints.
Impeller---Front and rear shrouds have pump out vanes that reduce re-circulation and seal contamination. Hard metal and molded elastomer impellers are completely interchangeable. Cast in impeller threads require no inserts or nuts.
Throat bush---Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
Specification:
Size range (outlet)
1" to 18"
25 mm to 450 mm
Capacities
to 22,000 gpm
to 5,000 m³/hr
Head
to 240 ft
to 73 mt
