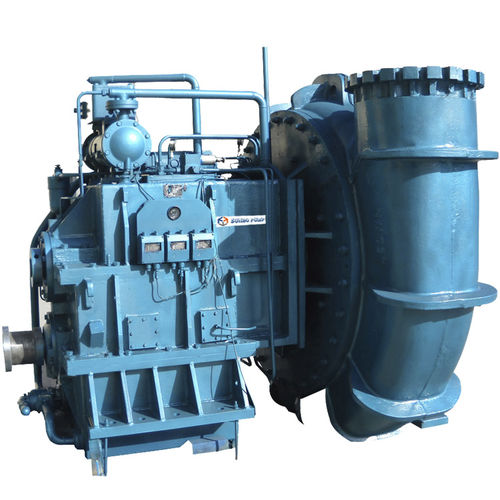

Centrifugal pump 450WN
for seawaterfor sanddiesel engine

Centrifugal pump - 450WN - Shijiazhuang Sunbo Pump Co., Ltd - for seawater / for sand / diesel engine
Centrifugal pump - 450WN - Shijiazhuang Sunbo Pump Co., Ltd - for seawater / for sand / diesel engine
Add to favorites
Compare this product


Characteristics

Technology
centrifugal
Fluid
for seawater, for sand
Operation
diesel engine
Priming
normal priming
Domain
for marine applications
Applications
dredging
Fluid specification
for heavy fluids
Other characteristics
single-stage, high-flow, with gear reducer
Flow

6,500 m³/h
(229,545.33369 ft³/h)

Min.: 1,200 m³/h
(42,377.60007 ft³/h)

Max.: 8,000 m³/h
(282,517.33377 ft³/h)

Pressure

6 bar
(87.023 psi)

Min.: 1 bar
(14.504 psi)

Max.: 8 bar
(116.03 psi)

Head

70 m
(229'07" )

Min.: 20 m
(65'07" )

Max.: 85 m
(278'10" )

Power

710 kW
(965.33 hp)

Min.: 120 kW
(163.15 hp)

Max.: 1,200 kW
(1,631.55 hp)

Description

Dedge pumps are a special category of heavy duty slurry pumps that are utilized in the process of dredging. Dredging is referred to as the process of transport of underwater sediments (usually sand, gravel or rocks) from one region to another. WN Dredge Pumps are new type of dredging sludge pumps, aiming at rivers and seas out of repair, handling big stones, sand and water slurries. WN dredge pump is single-stage single suction cantilever horizontal centrifugal pump with advantages of light weight, good wear-resistance, super dredging performance, perfectly suited for the dredge on the whole construction, high multiple economy benefits, etc.. It throughout meets requirements of the dredger to dredging pumps. Applications: ◆ Dredge ◆ Diamond Dredging ◆ Sand and Aggregate ◆ Sand and Gravel Dredging ◆ Mine Dewatering ◆ Abrasive Stone Slurry ◆ Quarry plant ◆ Mining Dredge ◆ Metal Melting Sludge ◆ River Dredge
