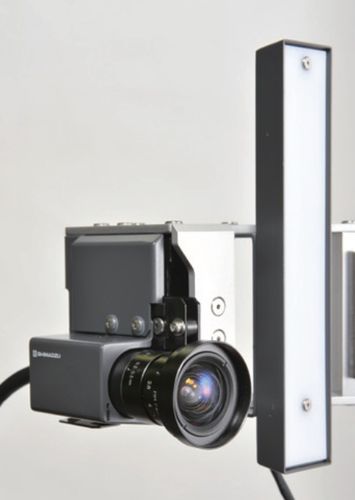

TRViewX is an advanced non-contact extensometer that offers high-measurement accuracy, is capable of measuring width changes, and is applicable to a wide variety of materials testing applications. In particular, due to the non-contact design, TRViewX is perfect for measuring films, foils, and other thin or narrow materials without affecting the specimen during testing. Furthermore, TRViewX can be used to measure displacements during atmosphere-controlled testing in a thermostatic chamber. TRViewX provides high-accuracy measurements in accordance with ISO 9513 Class 0.5 and JIS B 7741 Class 0.5 for elongation measurements and ISO 9513 Class 1 and JIS B 7741 Class 1 for width measurements. It is compliant with plastic tensile testing standards, including ISO 527, JIS K7161, and ASTM D638, even supporting 75 mm gauge length specimens (type A1 specimens) specified in ISO 527 and JIS K 7161.
Advanced, World Leading Non-Contact Extensometer
High-Accuracy Elongation Measurements
Width Measurement Functionality
Single and Dual Camera Models
High-intensity LED Lighting System
Advanced, World Leading Non-Contact Extensometer
High-Accuracy Elongation Measurements
Absolute accuracy ±1.5 μm, relative accuracy ±0.5% at room temperature
(ISO 9513 Class 0.5 and JIS B7741 Class 0.5)
Absolute accuracy ±3 μm, relative accuracy ±1.0% for in-chamber testing
(ISO 9513 Class 1 and JIS B7741 Class 1)
Width Measurement Functionality
Absolute accuracy ±2 μm, relative accuracy ±0.5% at room temperature
(ISO 9513 Class 1 and JIS B7741 Class 1)
Enables Lankford (r) value
