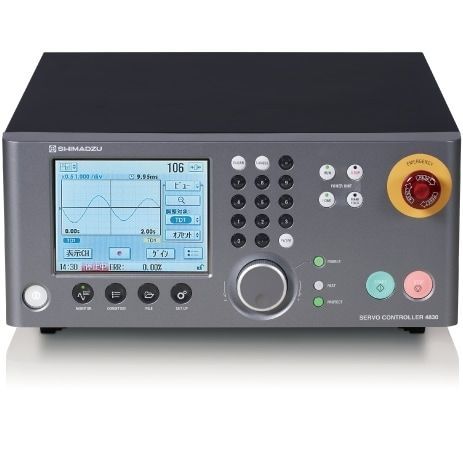

Control unit with display 4830

digital

Waveform Generation with Excellent Reproducibility Full digital control with control parameter auto-tuning and waveform distortion correction functions*1 achieves faithful load waveform reproducibility. Simultaneous Testing on 4 Units Max. Synchronous connection of controllers enables synchronous control of up to four testing machines (actuators). The controller also is equipped with a phase correction function that allows the phase difference between feedback signals to be controlled to a fixed level. Test Force Control on Specimens with "Play" Stable peak-value control is achieved using the test force, even for specimens with "play" (where no test force is applied). World-Class Basic Performance 24-bit high-resolution A/D converter and detector output linearization function achieve ±0.5 % accuracy of indicated values on a standard system. *2 Simple Operation The graphic user interface (GUI) using color LCD monitor and touch panel, and dedicated function keys allow operations to be conducted quickly and interactively. This means that even first-time users can perform operations with ease in a short time. Waveform Display Functions Test waveform display functions installed as standard allow the realtime display of time graphs and X-Y graphs, and digital reading of numerical values on graphs. USB Interface Connection to a PC via the USB interface allows controller functions to be considerably enhanced. (Dedicated software is optional.) *1 Optional Windows software for 4830 series *2 Provided as standard for the E-type, U-type and L-type loading frames, and Force Simulator
