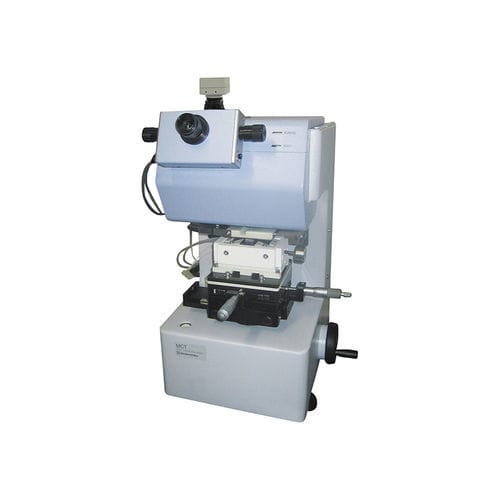

Measurement hardness tester MCT series

micro

This is a strength evaluation tester for micro parts and micro particles generated in powder processing. It is capable of carrying out not only compression tests, but also loading and unloading tests, repeated tests, and various other load patterns, with excellent operability and functionality. A New-Concept Compression Testing Machine for Evaluating the Strength of Micro Materials 1. Micro Compression Displacement Measurement To enable evaluation of compression characteristics of various micro materials, the MCT series provides models with two different resolution and measurement ranges: measurement range up to 100 μm and resolution of 0.001 μm. measurement range up to 10 μm and resolution of 0.0001 μm. 2. Wide Load Range The MCT series is available in two different test forces: maximum test forces of 4903 mN and 1961 mN. 3. Highly Accurate Measurement Test force are applied at an accuracy of ±1% of the set or displayed test force, whichever is greater. 4. Measurement of Specimen Dimension Provided as Standard The specimen dimension measurement function that uses an overhead image (provided as standard) enables determination of the geometrical mean diameter and length of the specimen. 5. Length Measurement on PC Screen and Saving of Images (optional) Use the optional length measurement kit (color or monochrome) to display the overhead image on the PC screen to measure the length of the specimen. The image can also be saved as digital data. 6. Display of Specimen Images During Compression(optional) An image captured in side observation during compression can be displayed (the optional side observation kit is required).
