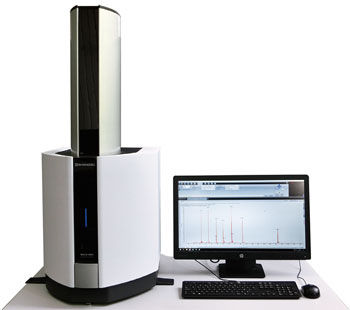

Mass spectrometer MALDI-8020

MALDI-TOFmeasurementcompact

A compact footprint without compromising on performance The MALDI-8020 is the latest in a long line of MALDI-TOF products from Shimadzu. This benchtop, linear MALDI-TOF mass spectrometer delivers outstanding performance in a compact footprint, making it an ideal choice for today’s increasingly demanding laboratories. Key features: - Linear mode (positive ion) MALDI-TOF - 200 Hz solid-state laser, 355 nm - Load-lock chamber for fast sample introduction - UV laser-based source cleaning (patented) - Small footprint/benchtop design - Quiet operation (5000 FWHM. Resolution, calculated by the software, is shown in brackets. Linear mode instruments have traditionally been the instruments of choice in MALDI-TOF-based quality control (QC) and profiling workflows, and the MALDI-8020 is no exception. Peptides, proteins, polymers or oligonucleotides - the instrument is capable of delivering the performance required for QC applications. Research laboratories will also benefit from the MS capabilities of the instrument through the rapid mass-measurement of samples. Compatible with the FlexiMass™ series of microscope slide-format sample targets, these slides provide researchers with options depending on their experimental workflow...To maintain instrument performance over time, the MALDI-8020 features wide-bore ion optics - a feature used on our existing MALDI-TOF products - which minimize the risk of source contamination over time, providing a robust platform...
