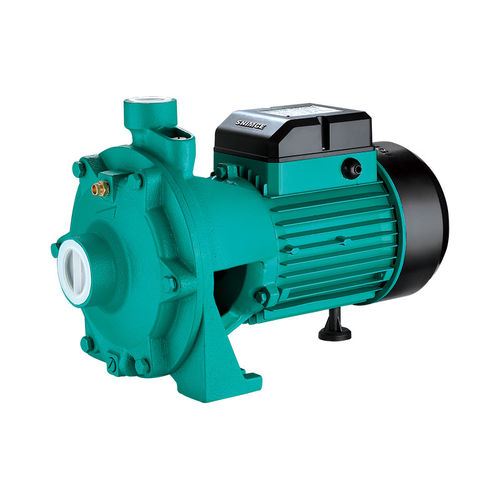

Water pump 2SGP(M) series

electricself-primingcentrifugal

Centrifugal Pumps 2SGP(M) Model:2SGP(m) The following is about Centrifugal Pumps 2SGP(m) related 2SGP, I hope to help you better understand Centrifugal Pumps 2SGP(m). Centrifugal Pumps 2SGP(M) Application Limits ◎ Suction head up to 8m ◎ Liquid temperature up to +40℃ ◎ Ambient temperature up to +40℃ ◎ Max. Working pressure: 5bar ◎ Voltage fluctuation should not exceed 10% of rated value. ◎ pH: 6.5 to 8.5 Application Fields ◎ Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water. ◎ Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, various corollary equipment, etc. Features ◎ Double impeller centrifugal pump, satisfies the requirement of high head. ◎ Compact structure Motor ◎ Single-Phase 220V/50Hz ◎ Three-Phase 380V/50Hz ◎ Mechanical seal: Ceramic/Graphite/NBR rubber ◎ Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running ◎ Protection: IP44
