Impeller pump CPH waterelectricself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- industrial, solar
- Applications
- cooling, circulation, boiler
- Material
- stainless steel, cast iron
- Other characteristics
- suction, mechanical, built-in, seal
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 36 m³/h
(1,271.328 ft³/h)- Pressure
Min.: 0 bar
(0 psi)Max.: 6 bar
(87.023 psi)- Head
Min.: 0 m
(0'00" )Max.: 30 m
(98'05" )- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 100 °C
(212 °F)- Length
Min.: 240 mm
(9 in)Max.: 435 mm
(17 in)- Width
Min.: 160 mm
(6.3 in)Max.: 220 mm
(8.66 in)- Height
Min.: 312 mm
(12.28 in)Max.: 365 mm
(14.37 in)- Weight
Min.: 8.9 kg
(19.62 lb)Max.: 37.5 kg
(82.67 lb)
Description

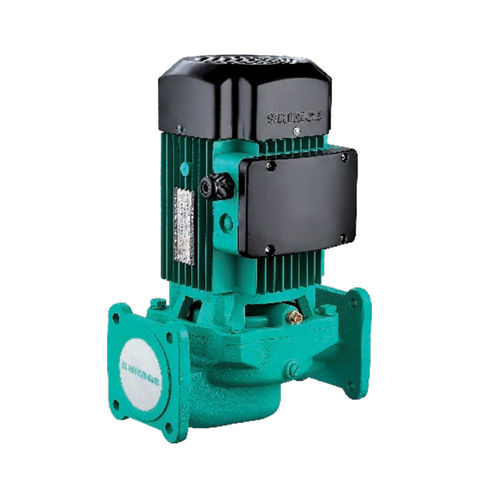

Hot Water Circulation Pumps CPH
Model:CPH
The following is about Hot Water Circulation Pumps CPH related CPH, I hope to help you better understand Hot Water Circulation Pumps CPH.
Voltage fluctuation should not exceed 10% of rated value.
pH: 6.5 to 8.5
Mains connection: 220V/50Hz、380V/50Hz
Applications Fields ◎
Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
Widely used in HVAC, industrial circulating water system, solar hot water and boiler circulating system, living water supply, etc.
Features ◎
Pump body: Cast iron, electrophoretic treatment
Impeller: Cast iron, electrophoretic treatment
Shaft: 304 stainless steel welding shaft
Mechanical seal: SiC/Graphite/ FPM rubber
Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
Protection: IPX4 or IP22
Insulation: B
NSK bearing
Catalogs
General Catalogue
57 Pages
