Impeller pump CPHB waterfor hot waterelectric
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water, for hot water
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- industrial, solar
- Applications
- circulation, boiler
- Material
- stainless steel, brass
- Other characteristics
- flange, heating
- Flow
Max.: 10 m³/h
(353.14667 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Pressure
Max.: 10 bar
(145.038 psi)Min.: 0 bar
(0 psi)- Head
Max.: 8 m
(26'02" )Min.: 0 m
(0'00" )- Power
195 kW, 265 kW
(265.13 hp, 360.3 hp)- Fluid temperature
Max.: 100 °C
(212 °F)Min.: 0 °C
(32 °F)
Description

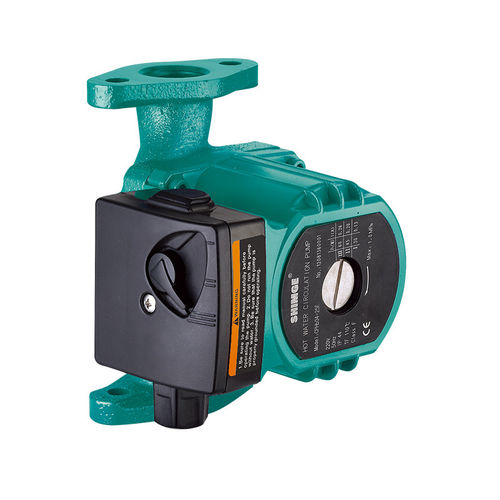

Hot Water Circulation Pumps CPHB
Model:CPHB
The following is about Hot Water Circulation Pumps CPHB related CPHB, I hope to help you better understand Hot Water Circulation Pumps CPHB.
Hot Water Circulation Pumps CPHB
Model:CPHB
The following is about Hot Water Circulation Pumps CPHB related CPHB, I hope to help you better understand Hot Water Circulation Pumps CPHB.
Application Limits ◎
Liquid temperature: +2℃～ +100℃
Maximum ambient temperature +40℃
Maximum system pressure 10bar
Protection level: IP44
Mains connection: 220V/50Hz
Insulation class: H
Pumped liquid characteristics: clean, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of water
Installation: the motor shaft must be kept in horizontal direction
pH: 6.5 to 8.5
Applications Fields
For hot water circulation system such as HVAC systems, solar hot water circulation system, boiler heating system, pressurization of domestic tap water, industry water circulation system, etc.
Features ◎
Flange connection
Low noise
No leakage
Optional Available on Request
Products can be customized according to customer's voltage and frequency
Brass pump body, enamel pump body, stainless steel pump body
