- Hydraulics - Pneumatics
- Pump
- Impeller pump
- Shimge Pump Industry (Zhejiang) Co.,Ltd

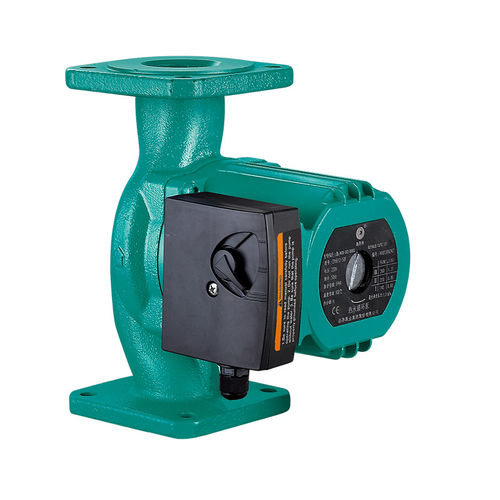

Impeller pump XPS waterairelectric
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water, air
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- solar
- Applications
- circulation, service
- Material
- stainless steel, bronze, brass
- Other characteristics
- heating
- Flow
Max.: 10 m³/h
(353.14667 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Pressure
Max.: 10 bar
(145.038 psi)Min.: 0 bar
(0 psi)- Head
Max.: 12 m
(39'04" )Min.: 0 m
(0'00" )- Power
Max.: 245 kW
(333.11 hp)Min.: 30 kW
(40.79 hp)- Fluid temperature
Max.: 110 °C
(230 °F)Min.: 0 °C
(32 °F)- Length
Max.: 170 mm
(7 in)Min.: 120 mm
(5 in)- Width
Max.: 180 mm
(7.09 in)Min.: 130 mm
(5.12 in)- Height
Max.: 150 mm
(5.91 in)Min.: 105 mm
(4.13 in)- Weight
Max.: 5.2 kg
(11.46 lb)Min.: 2.3 kg
(5.07 lb)
Description
Three Speed Circulation Pumps XPS
Model:XPS
The following is about Three Speed Circulation Pumps XPS related XPS, I hope to help you better understand Three Speed Circulation Pumps XPS.
Three Speed Circulation Pumps XPS
Performance Range
Application Limits ◎
Liquid temperature: +2℃～ +110℃
Maximum ambient temperature +40℃
Maximum system pressure 10bar
Protection level: IP44
Mains connection: 220V/50Hz
Insulation class: H
Pumped liquid characteristics: clean, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of water
Installation: the motor shaft must be kept in horizontal direction
pH: 6.5 to 8.5
Applications Fields
XPS pumps are designed for circulation of liquids in heating and air-conditioning systems. Pumps with bronze or stainless steel housings are also suitable for use in hot-water service systems. Examples of typical applications are mix water underfloor heating system, air energy hot water circulation system, solar hot water circulation system, etc.
Features
3-speed adjustment
No leakage
Optional Available on Request
Products can be customized according to customer's voltage and frequency
Brass pump body, enamel pump body, stainless steel pump body
