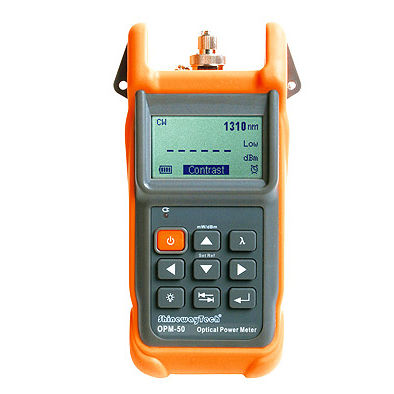

Optical power meter OPM-50 series

laserdigitalportable

OPM-50 Intelligent Optical Power Meter ●Automatic wavelength identification ● Remote reference value setting ●FTTx applicable ●Internal clock & fiber S/N editable ●Memory of 1000 test records ● Data Transfer to PC via USB ●SB power charging ●No warm-up, quick start ●Backlight ●70 hours continuous operation ●Pocketsize, lightweight and easy-to-use ●CE FCC certificates OPM-50 paired with SLS-50 Intelligent Stabilized Laser Source can be used to identify fiber, measure attenuation and loss, verify continuity and evaluate fiber link transmission quality. Automatic Wavelength Identification Compatible with the digital encryption protocols of SLS-50, OPM-50 can automatically identify the wavelength of the optical signals transmitted from SLS-50 and switch to the corresponding test mode, which greatly reduces the workload at both ends and avoids potential error. Remote Reference Value Setting OPM-50 can receive the power parameters of digital-encrypted signal transmitted from SLS-50 as reference for precise link loss measurement even when the two units are far apart. Internal Clock & Fiber S/N Editable Internal clock enables OPM-50 to save test data with time and editable fiber SN information. Compatible with FTTx Test OPM-50 can be applied to measure Triple-play signals (1310nm, 1490nm and 1550nm) on Passive Optical Network (PON).
