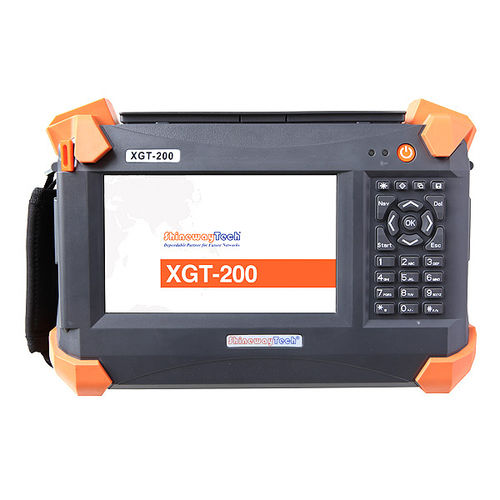

XGT-200 10G Ethernet Tester
ShinewayTech® XGT-200 Ethernet tester provides a complete test for next generation Ethernet solution. There are many different test modules, which can help to verify the performance of their Ethernet. XGT-200 has two 10/100/1000Mb/s electrical interfaces, two 100/1000M SFP optical interfaces and two 10Gbps SFP+. It can generate and analyze the test traffic streams, and provide the result. XGT-200 provides install, maintaininstallation, maintenance services, and activateactivates new profession serviceservices. XGT-200 can provide a variety of test functions, which can help user to control and know the quality of Ethernet. We believe that the XGT-200 will be the comprehensive and simple Ethernet and advanced IP connectivity test suites for the field technicians.
Features
●Smart and durable, field application ready
● 7-inch HD color touch screen, sun readable
●User-friendly user interface
● PC remote control
●Test profiles and data management, USB/FTP transfer
●Comprehensive testing for Ethernet testing
● Lithium battery up to 4 hours continuous testing
Functions:
●10GE SFP+ x2, 10/100/1000BASE-T RJ45 x2,100/1000BASE-X SFP x2
●10M - 10Gb/s bandwidth, LAN and WAN mode
●Layer 1/2/3/4 BERT test
●Multi-stream traffic generation and analysis
●RFC2544 and Y.1564 test
●OAM test (optional)
●VLAN and VLAN Q-in-Q test
●MPLS test with multiple MPLS tags
●Service disruption time test
●CoS and ToS/DSCP priority test
●Packet capture
●Intelligent detection and remote controlled loopback test
●Statistical analysis report
