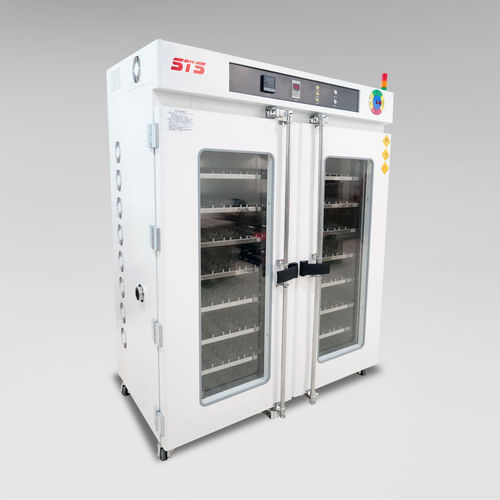

Thermostatic test chamber STS-RDT-CATC-800PC

temperatureEMCanalysis

SSD manufacturer have an immediate need for a test system that is able to test SSDs as standard generic drives, but to also test for unique SSD drive failure modes and attributes of the underlying solid state technology. Whole Test System Functions 1. Support Maximum Simultaneous Measurable Quantity is 800 pieces. 2. 100 sets of PCB burn-in boards, each with 8 SSDs, that is, 800 pieces; divided into two turnover trolleys 3. Power supply AC/DC5V 1200W, power of each product: 5V, 5A 4. All SSD products are carried by the test trolley, which can be pulled out and separated from the test box; 2 turnover trolleys 5. Internal temperature hot air circulation, entering from the left and right sides, and returning air at the top of the middle 6. There are fully automatic fresh air inlets on the left and right sides. When the temperature of the product in the inner box exceeds the temperature, the middle exhaust fan is forced to exhaust the air. 7. There are 5 monitoring points for the temperature of the inner box, the upper, middle and lower parts are displayed locally, and the main control temperature point is 1 8. The product has 80 voltage monitoring points and 80 current monitoring points
