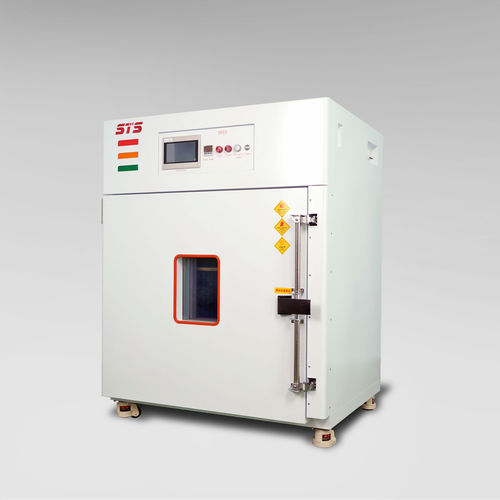

Cabinet oven STS-DOTC
dryingstoragevacuum

Add to favorites

Compare this product

Characteristics

Configuration

cabinet

Function

drying, storage

Atmosphere

vacuum

Other characteristics

stainless steel, industrial

Maximum temperature

200 °C
(392 °F)

Capacity

Max.: 420 l
(110.95 gal)

Min.: 50 l
(13.21 gal)

Width

415 mm, 450 mm, 560 mm, 630 mm
(16.34 in, 17.72 in, 22.05 in, 24.8 in)

Height

345 mm, 450 mm, 640 mm, 840 mm
(13.58 in, 17.72 in, 25.2 in, 33.07 in)

Depth

370 mm, 450 mm, 600 mm, 810 mm
(14.57 in, 17.72 in, 23.62 in, 31.89 in)

Description

STS-VC series of Vacuum Drying Cabinet, The vacuum degree digital display accurate control, applies to the high precision request vacuum drying and the goods storage. ◆ With resistance silicon tube pressure sensor, the vacuum degree can be adjusted from 100Pa to atmospheric pressure. ◆ The vacuum sensor can sense the vacuum directly and has stable performance. ◆ After setting the upper and lower limits of vacuum degree, the vacuum pump opens and closes automatically, and the overall vacuum drying process control can realize the programmed vacuum cycle. ◆ Power: AC 220V±10% 50HZ；Environment temperature: +5 ～ 35℃； ◆ Constant temperature fluctuation: ±1℃ , Temperature accuracy is 0.1℃； ◆ Optional vacuum data storage or printing.
