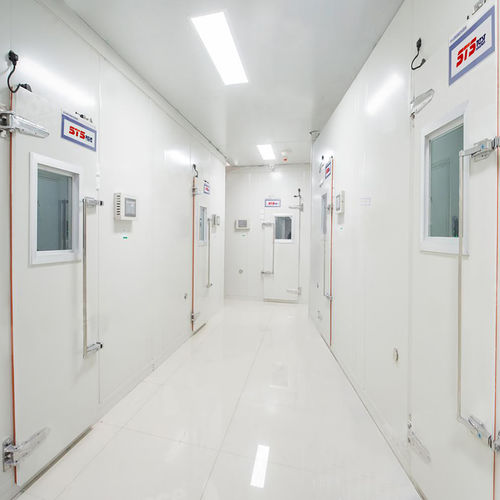

Stability test chamber STS-WI-STC

for the pharmaceutical industrywalk-instainless steel

Test Method: Refer to GB/T 10586-2006, JJF1101-2003 environmental test equipment temperature and humidity calibration specification for technical conditions of hot and humid test chamber. Features 1. - Electronic recording system. Comply with the FDA 21 CFR Part II law standard. Stable system performance, Audit tracking function, Three levels of user hierarchical authority management. 2. - Temperature Range: 20 ~ 50eC, Temperature Fluctuation: £±0.5eC, Temperature Deviation: £±1.0°C; 3. - Humidity Range: 40 ~ 90%RH, Humidity Deviation: £±3.0%RH (Customizable Humidity Range: 25 ~ 90%RH) ; 4. - Test point can be choosed: 405C/75%RH, 25=C/60%RH, 30eC/65%RH (40=C/25%RH, 25eC/40%RH, 25=C/60%RH) ; 5. - Low Temperature Laboratory: The cool storage can be customized under 20eC and 2 ~ 8=C cold storage. Standard Configuration: 1. - Structure System: The newly airway system designed achieves uniform of temperature and humidity form different parts inside the chamber. The inner wall and duct plate are made of stainless steel 304. Observation window of hollow tempered glass with electrothermal film. Illumination lamp, control panel with running indicator light and MIL malfunction indicator lamp. 2. - Refrigerating System: Original imported refrigeration compressor unit with high performance, low noise and one work one back up. 3. - Control System: Original imported programmable chromatic touch screen controller, sensitive, Small system error. Multi - stage program setting and multi - point accurate calibration function, With three level password; 4. - Humidity System: The world's top VAISALA original imported humidity transducer with high precise.Low drift,Long-life and maintenance-free.
