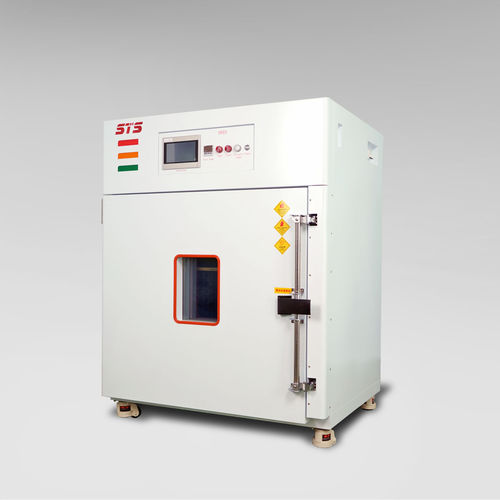

High-temperature oven STS-HTOchamberdryingpreheating
Add to favorites
Compare this product
Characteristics
- Configuration
- chamber
- Function
- drying, preheating
- Heat source
- electric
- Atmosphere
- air circulating
- Other characteristics
- high-temperature
- Maximum temperature
Min.: 10 °C
(50 °F)Max.: 250 °C
(482 °F)400 °C, 500 °C
(752 °F, 932 °F)- Capacity
72 l, 150 l, 270 l, 480 l, 1,000 l
(19.02 gal, 39.63 gal, 71.33 gal, 126.8 gal, 264.17 gal)- Width
820 mm, 920 mm, 1,020 mm, 1,220 mm, 1,400 mm
(32.28 in, 36.22 in, 40.16 in, 48.03 in, 55.12 in)- Height
1,100 mm, 1,140 mm, 1,750 mm, 1,850 mm, 1,900 mm
(43.31 in, 44.88 in, 68.9 in, 72.83 in, 74.8 in)- Depth
500 mm, 620 mm, 730 mm, 900 mm, 1,200 mm
(19.69 in, 24.41 in, 28.74 in, 35.43 in, 47.24 in)
Description
Features:
1. The material of the outer box is SECC steel plate, which is taken care of by powder baking paint; the material of the inner box is SUS stainless steel;
2. New high temperature resistant long axis motor;
3. Turbo fan;
4. Silicon Packing;
5. Over-temperature protection and overload automatic power-off system;
6. Circulation method: forced horizontal air circulation;
7. Timer: when the temperature is up, the heating current is cut off;
8. Tempered glass windows.
The Main Purpose:
Used in factories, scientific research and enterprises and institutions, it is mainly used for baking, drying and other heating of various items (test products), such as the drying of transformer cores or coils, and the drying of motor stator or rotor windings. Drying, preheating of electric electrodes before welding, drying of foundry sand, painting of electric cabinets and parts drying, etc.
Catalogs
STS-HTO
2 Pages
