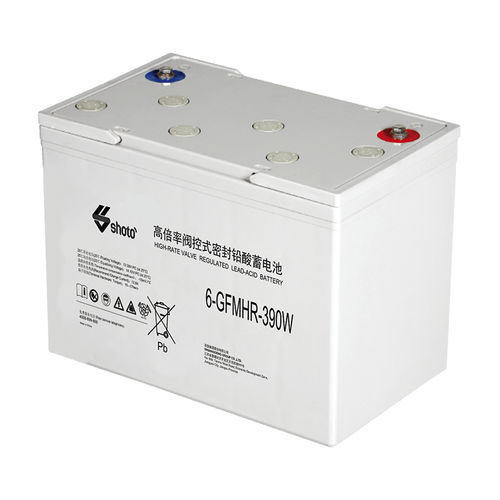

Valve-regulated battery 6-GFMHR series
12 Vfor UPSM8

Valve-regulated battery - 6-GFMHR series - Shoto / Shuangdeng Group Company Limited - 12 V / for UPS / M8
Valve-regulated battery - 6-GFMHR series - Shoto / Shuangdeng Group Company Limited - 12 V / for UPS / M8
Valve-regulated battery - 6-GFMHR series - Shoto / Shuangdeng Group Company Limited - 12 V / for UPS / M8 - image - 2
Valve-regulated battery - 6-GFMHR series - Shoto / Shuangdeng Group Company Limited - 12 V / for UPS / M8 - image - 3
Valve-regulated battery - 6-GFMHR series - Shoto / Shuangdeng Group Company Limited - 12 V / for UPS / M8 - image - 4
Valve-regulated battery - 6-GFMHR series - Shoto / Shuangdeng Group Company Limited - 12 V / for UPS / M8 - image - 5
Valve-regulated battery - 6-GFMHR series - Shoto / Shuangdeng Group Company Limited - 12 V / for UPS / M8 - image - 6
Add to favorites
Compare this product


Characteristics

Type
valve-regulated
Voltage
12 V
Applications
for UPS
Connection type
M8
Other characteristics
high-performance
Load capacity

Min.: 80 Ah

Max.: 180 Ah

Length / diameter

289 mm, 331 mm, 472 mm, 503 mm, 549 mm
(11.4 in, 13 in, 18.6 in, 19.8 in, 21.6 in)

Width

110 mm, 125 mm, 174 mm, 212 mm
(4.33 in, 4.92 in, 6.85 in, 8.35 in)

Height

214 mm, 225 mm, 310 mm, 315 mm
(8.4 in, 8.9 in, 12.2 in, 12.4 in)

Power

Min.: 320 W

Max.: 700 W

Weight

Min.: 26.5 kg
(58.42 lb)

Max.: 61 kg
(134.48 lb)

Description

6-GFMHR series of high-rate valve-regulated sealed lead-acid battery is a 12V series lead-acid battery specially developed by Shuangdeng Group using the advanced technology for the data center, UPS... Benefits High rate, can be used in the standby power which less than 15min High consistency, security, reliability and stability Fast charging speed, low self-discharge rate Designed life is 15 years Good anti-high current performance Good anti-over-discharge performance Excellent anti-overcharge performance Good anti-impact performance Excellent anti-vibration performance Technical Features Double-sided smear, cast welding and other processes strengthen the process control and improve battery consistency High-strength ABS material and patented sealing technology ensure the normal use of the battery without leakage, expansion and rupture Long service life: Corrosion-resistant alloy greatly extends the battery life
