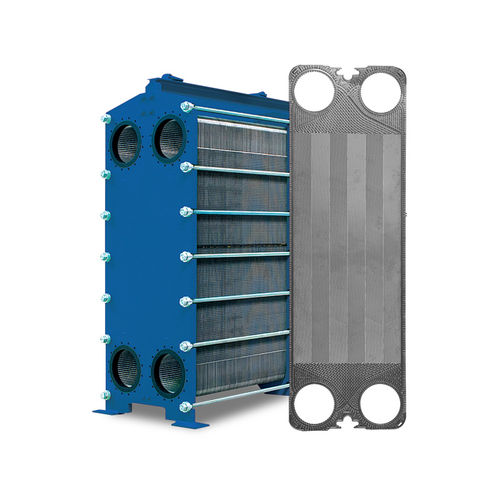

Plate heat exchanger Aurora series

liquid/liquid

Aurora's Plate & Frame Heat Exchangers use corrugated plates creating more heat transfer with less materials. Gasketed plate and frame heat exchangers are used for liquid-to-liquid applications such as HVAC, chemical, sugar, marine, food, and renewable energy and power. KEY FEATURES Gasketed plate and frame heat exchangers are used for liquid-to-liquid applications such as HVAC, chemical, sugar, marine, food, renewable energy and power Energy cost savings with corrugated plates creating more heat transfer with less materials Lower up-front costs for installation and maintenance thanks to fewer plates Quality construction and materials mean your purchase will last longer than other, similar heat exchange products Versatility in a wide-range of sizes, materials and configurations to fit your needs and the particular footprint of your product ASME and PED pressure vessel certifications 100% CFD Modeled plate design for optimal heat transfer ASME and PED pressure vessel certifications Wide-range of sizes, materials and configurations Made in USA AURxx1 - AURxx5 Maximum pressure is 300 PSIg Maximum temperature is 410°F (requires Viton, max temp for EPDM is 300°F) Maximum flow is 8,400 G.P.M. per HX AURxx9 Maximum pressure is 360 PSIg Maximum temperature is 410°F (requires Viton, max temp for EPDM is 300°F) Maximum flow is 4000 G.P.M. per HX
