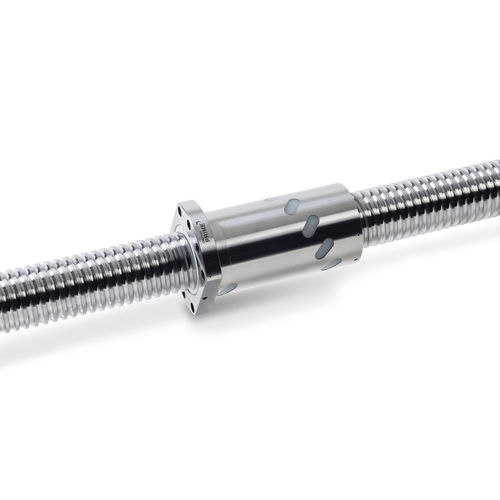

Preloaded ball screw PRIME TC series

steelhigh-precisionrecirculating

TC PRIME PRELOADED COMPACT NUT The preloaded PRIME compact nut is composed of one piece, configured with S-type recirculation system and has 1 start. Depending on the application, the compact nut offers: Better alignment and concentricity of the whole nut with the screw. Reduced nut length, thus less mass. Elimination of the bearing holder parts in rotary nut designs. Possibility of special designs, with compact nut-carrying bodies. SHUTON recommends the use of preloaded compact nuts in short and medium-sized ball screws with short leads. Preload system: The preload is obtained by modifying the dimension of a thread in the centre of the nut.
