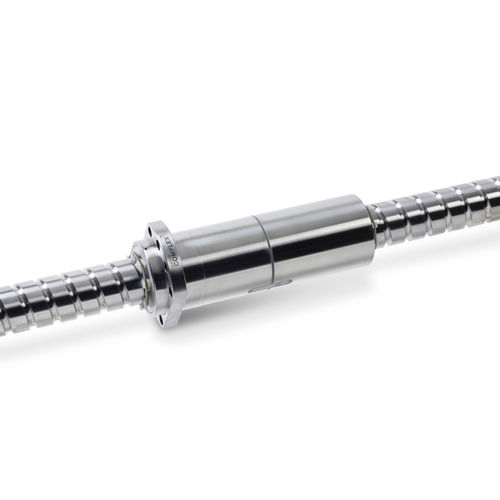

Double nut ball screw Complex TD series

steelhigh-precisionhigh-rigidity

TD COMPLEX PRELOADED DOUBLE NUT The COMPLEX preloaded double nut is composed of two semi-nuts and is configured with U-type or B-type recirculation system and can have 1 or 2 starts. The 2 -start option is used in cases of higher load requirements without nut length limitation. Ball screws can be maintained quickly, as they do not need to be dismounted from the machine. Just loosen the nut and replace the spacer to preload. Preload system: The thickness of the washer between the two nuts establishes the preload value. SHUTON COMPLEX ball screws have been designed for applications with requirements of accurate positioning, high speeds and high loads, such as high speed, 5 axis machining centres, large sized machining centres and combined machine tools, die mold processing machines, aeronautics and automotive work pieces and other applications with highly demanding conditions.
