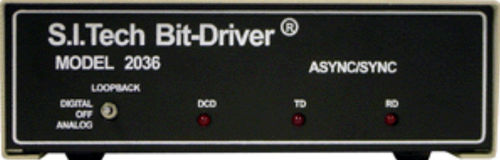

RS232 modem 2036
fiber opticindustrial

RS232 modem
RS232 modem
RS232 modem
RS232 modem
Add to favorites
Compare this product


Characteristics

Network
RS232, fiber optic
Application
industrial

Description

Operating Mode: - Asynchronous/Synchronous, full duplex with control signals Input/Output Interface: - RS-232-C. Transmission Line Interface: - ST connector is standard for interfacing with fiber optic duplex cable (SMA option) Optical Power into a 62.5 Micron Core Optical Fiber: - 10 microwatts, 15 dB power budget @ 850 nanometers (1300nm option) Receiver Sensitivity: - 300 nanowatts at less than 10-9 bit error rate Operating Temperature: - 0 °C to 50 °C Weight: - 4.0 lb (1.8 kg) Input Power: - 105 to 130 VAC, 50 to 500 Hz, 10 W Features: Full duplex Asynchronous/Synchronous 64 Kbps with signals. 6600 ft (2 Km) distance capability 0°C to +50°C operation range ST connector receptacle RS232 Interface
