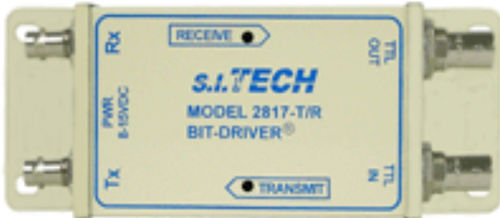

Signal converter 2817

fiber opticsTTL

Transmission: - Up to 6500 ft. (2 Km) with suitable graded index fiber optic cable or 10 Km using single mode fiber Typical Bit Error Rate: - Better than 10-9 ELECTRICAL SIGNAL INPUT/OUTPUT FOR TRANSMITTER AND RECEIVER Format: - TTL Connector: - BNC Data Rate: - Up to 20Mbps Input Impedance: - TTL levels 10 K-Ohm Output Impedance: - TTL levels into 50 Ohm Input Power: - 8 to 15VDC 250mA Max OPTICAL TRANSMITTER LED Current: - 30 microwatts (-15 dBm) into 62.5 micron fiber Wavelength: - 820 nanometers (1300 nm option) Emitter Type: - LED Optical Connector: - ST OPTICAL RECEIVER Wavelength: - 820 nm (1300 nm option) Minimum Sensitivity: - (BER 10-9) 3 microwatt (-25 dBm) @ 820 nanometers Maximum Sensitivity: - 10 microwatts Optical Connector: - ST Storage Temperature: - -40°C to 80°C Operating Temperature: - 0°C to 50°C Relative Humidity: - 10 to 95% Non-Condensation Size: - 5.125" X 2.125" X 1.0" (13.00 X 5.40 X 2.54 cm) TRANSMISSION LINE INTERFACE Operating distance is dependent upon optical fiber core diameter and the cable's optical attenuation. The table below indicates three cables that may be used at any data rate. These cables are available in connectorized assemblies to meet the exact configuration of your application. S.I.Tech offers complete links including fiber optic cable, connectors, cable assemblies, and Bit-Drivers®.
